Learn more about ADH press brakes

About ADH

Established in 2002 with machine-tool roots dating to 1984, ADH manufactures equipment in Ma'anshan, China. Its press brake range covers NC, CNC, electric and tandem bending for sheet and plate.

ADH designs, manufactures, assembles and inspects its sheet-metal equipment, then plans delivery, training and service for each machine.

1984Machine-tool industry roots
2002ADH established
130+Countries and regions supplied
138Patent certificates
350,000 m²Manufacturing site area

The ADH Press Brake Range

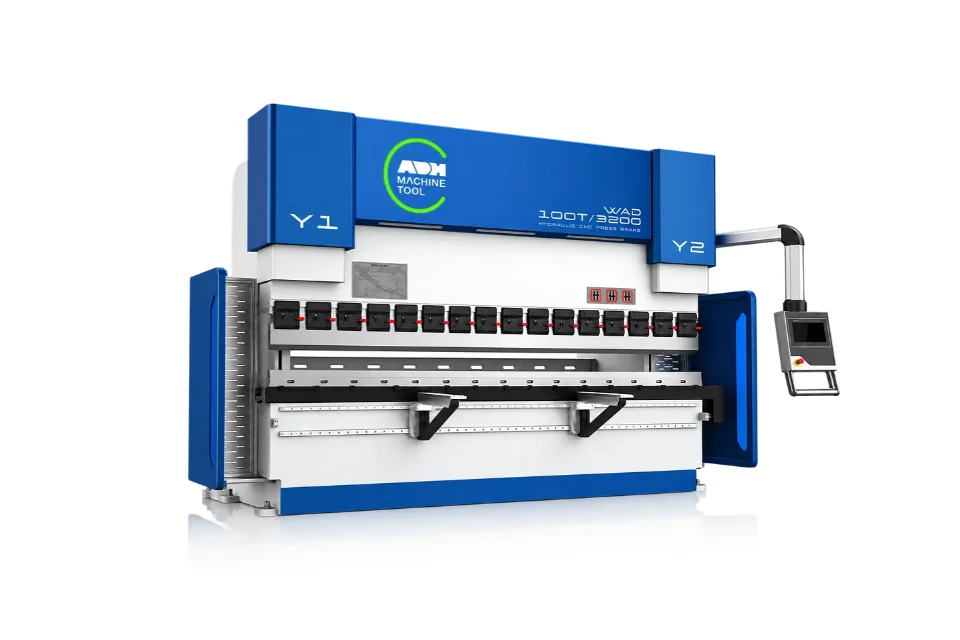

WAD

Independent Y1/Y2 control for CNC bending.
26 models · 50–300 T · 1,300–6,000 mm

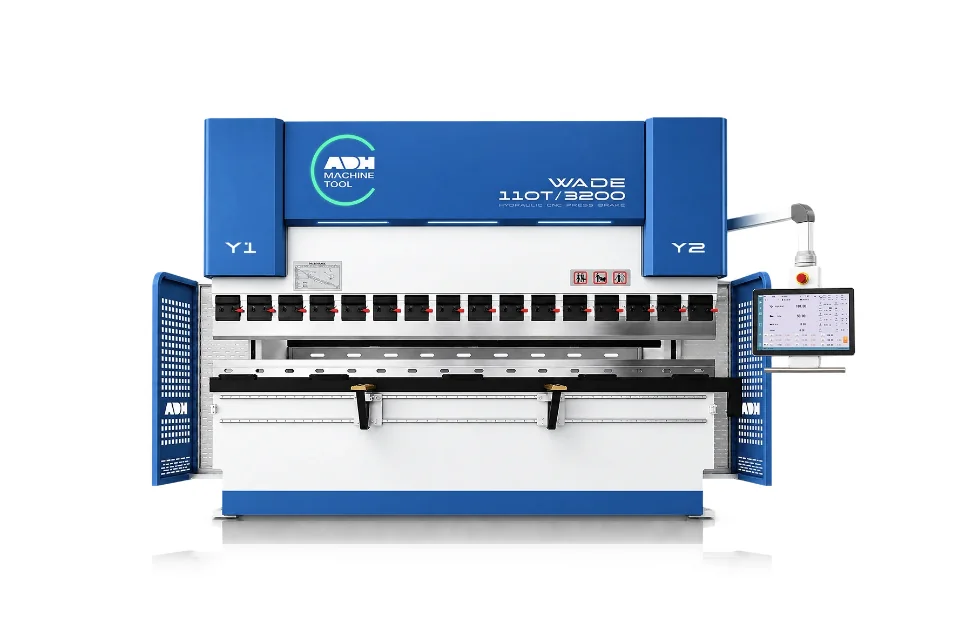

WADE

Closed-loop Y1/Y2 control with ACS controllers.
25 models · 50–300 T · 1,300–6,000 mm

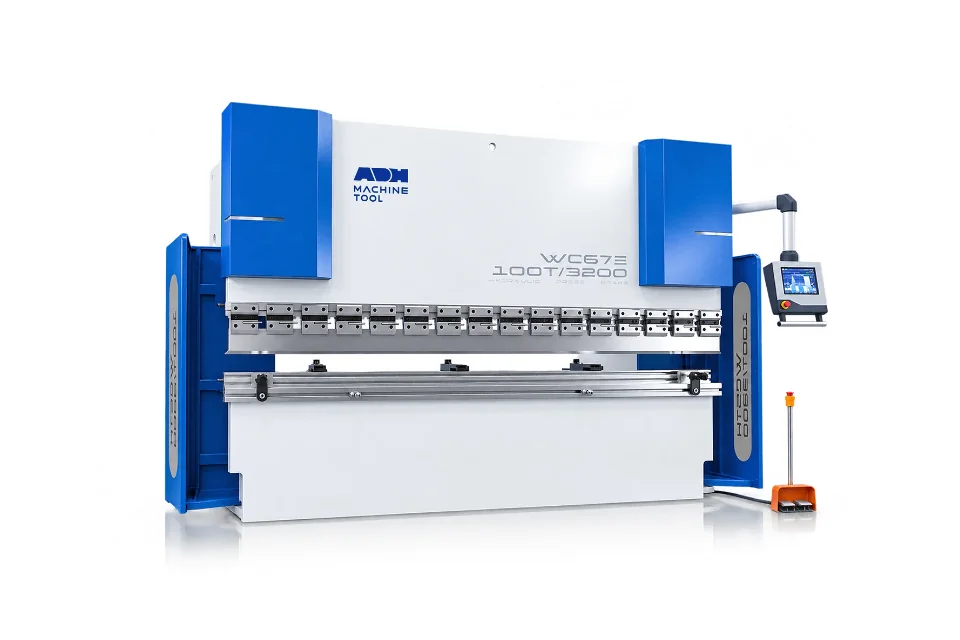

WC67K/E

Torsion-bar synchronization for repeatable bending.
36 models · 30–400 T · 1,600–6,000 mm

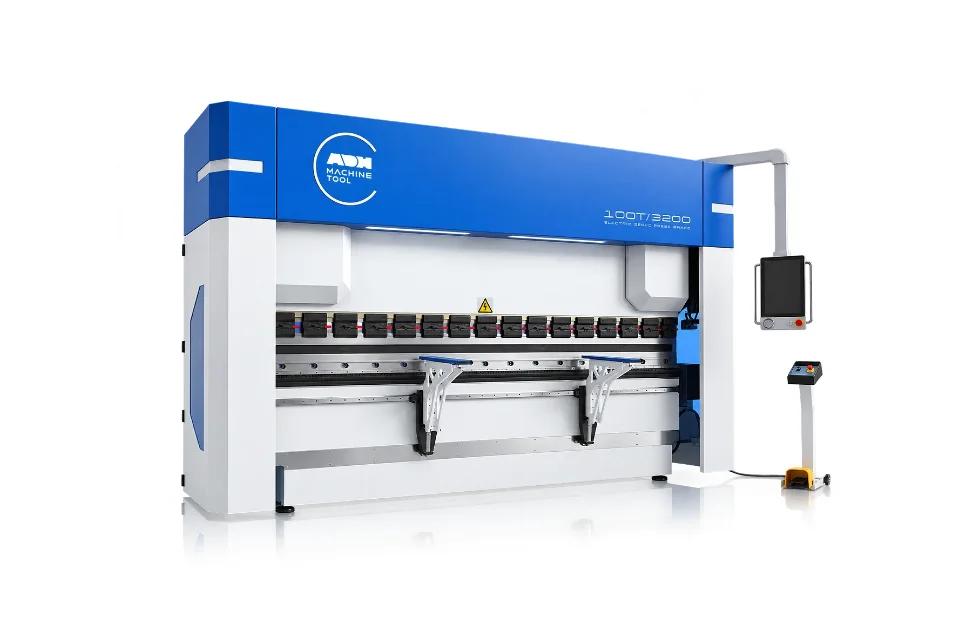

WADG

All-electric bending without a hydraulic power unit.
10 models · 10–160 T · 500–3,200 mm

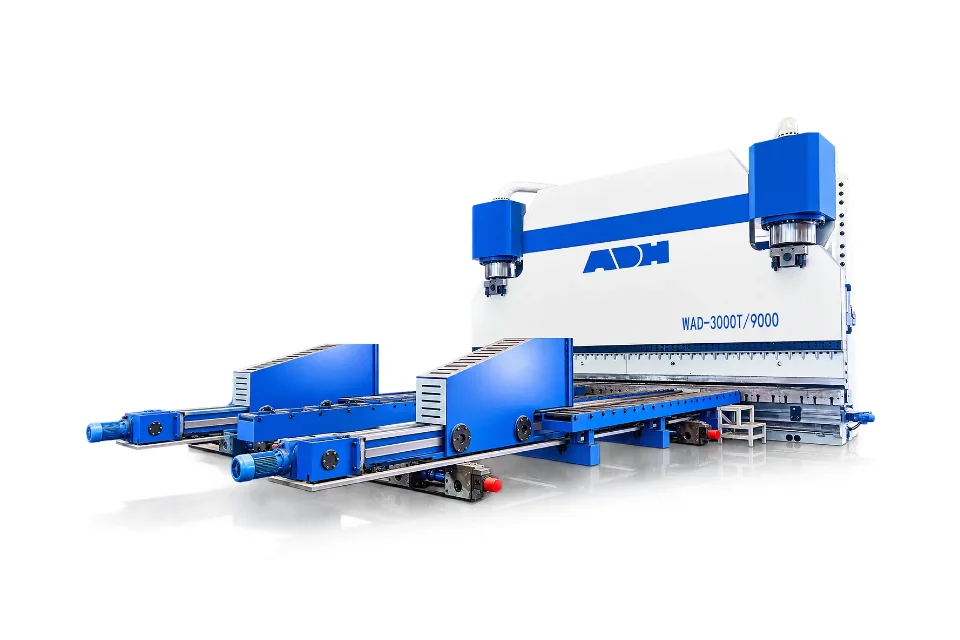

WAD heavy-duty

A reinforced WAD platform for long and high-force forming.
21 models · 400–1,200 T · 4,000–8,000 mm

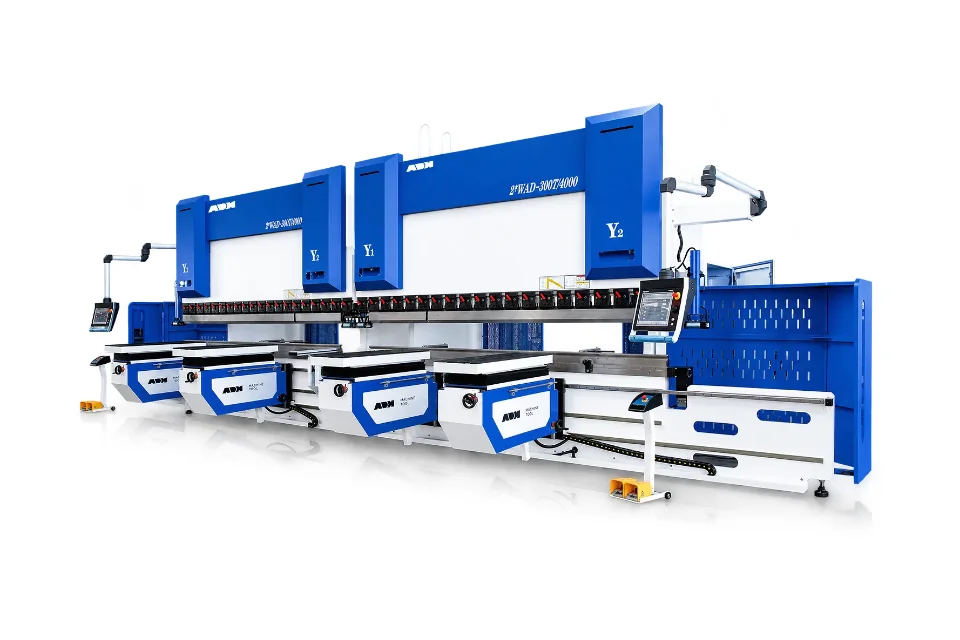

2-WAD tandem

Two matched press brakes forming one bend line.
Project-engineered, no standard models

Company information, specifications and images from ADH home page, Why ADH, Press brakes, WAD CNC press brake, WADE CNC press brake, WC67K/E NC press brake, WADG electric press brake, WAD heavy-duty press brake, retrieved 27 October 2026. ADH states that it has supplied 130+ countries and regions, so its models are listed in every catalog region.

Model	Pressing force	Bending length	Open height	Throat depth
WAD-50T/1300	50 T	1,300 mm	460 mm	250 mm
WAD-50T/1600	50 T	1,600 mm	460 mm	250 mm
WAD-70T/2000	70 T	2,000 mm	460 mm	300 mm
WAD-70T/2500	70 T	2,500 mm	460 mm	300 mm
WAD-80T/2500	80 T	2,500 mm	460 mm	300 mm
WAD-110T/3200	110 T	3,200 mm	480 mm	400 mm
WAD-110T/4100	110 T	4,100 mm	480 mm	400 mm
WAD-135T/3200	135 T	3,200 mm	480 mm	400 mm
WAD-135T/4100	135 T	4,100 mm	480 mm	400 mm
WAD-170T/3200	170 T	3,200 mm	480 mm	450 mm
WAD-170T/4100	170 T	4,100 mm	480 mm	450 mm
WAD-170T/5000	170 T	5,000 mm	480 mm	450 mm
WAD-170T/6000	170 T	6,000 mm	480 mm	450 mm
WAD-220T/3200	220 T	3,200 mm	480 mm	450 mm
WAD-220T/4000	220 T	4,000 mm	480 mm	450 mm
WAD-220T/4100	220 T	4,000 mm	480 mm	450 mm
WAD-220T/5000	220 T	5,000 mm	480 mm	450 mm
WAD-220T/6000	220 T	6,000 mm	480 mm	450 mm
WAD-250T/3200	250 T	3,200 mm	540 mm	450 mm
WAD-250T/4000	250 T	4,000 mm	540 mm	450 mm
WAD-250T/5000	250 T	5,000 mm	540 mm	450 mm
WAD-250T/6000	250 T	6,000 mm	540 mm	450 mm
WAD-300T/3200	300 T	3,200 mm	570 mm	500 mm
WAD-300T/4000	300 T	4,000 mm	570 mm	500 mm
WAD-300T/5000	300 T	5,000 mm	570 mm	500 mm
WAD-300T/6000	300 T	6,000 mm	570 mm	500 mm

Model	Pressing force	Bending length	Open height	Throat depth
WADE-50T/1300	50 T	1,300 mm	460 mm	250 mm
WADE-70T/2000	70 T	2,000 mm	460 mm	300 mm
WADE-70T/2500	70 T	2,500 mm	460 mm	300 mm
WADE-80T/2500	80 T	2,500 mm	460 mm	300 mm
WADE-110T/3200	110 T	3,200 mm	480 mm	400 mm
WADE-110T/4100	110 T	4,100 mm	480 mm	400 mm
WADE-135T/3200	135 T	3,200 mm	480 mm	400 mm
WADE-135T/4100	135 T	4,100 mm	480 mm	400 mm
WADE-170T/3200	170 T	3,200 mm	480 mm	450 mm
WADE-170T/4100	170 T	4,100 mm	480 mm	450 mm
WADE-170T/5000	170 T	5,000 mm	480 mm	450 mm
WADE-170T/6000	170 T	6,000 mm	480 mm	450 mm
WADE-220T/3200	220 T	3,200 mm	480 mm	450 mm
WADE-220T/4000	220 T	4,000 mm	480 mm	450 mm
WADE-220T/4100	220 T	4,000 mm	480 mm	450 mm
WADE-220T/5000	220 T	5,000 mm	480 mm	450 mm
WADE-220T/6000	220 T	6,000 mm	480 mm	450 mm
WADE-250T/3200	250 T	3,200 mm	540 mm	450 mm
WADE-250T/4000	250 T	4,000 mm	540 mm	450 mm
WADE-250T/5000	250 T	5,000 mm	540 mm	450 mm
WADE-250T/6000	250 T	6,000 mm	540 mm	450 mm
WADE-300T/3200	300 T	3,200 mm	570 mm	500 mm
WADE-300T/4000	300 T	4,000 mm	570 mm	500 mm
WADE-300T/5000	300 T	5,000 mm	570 mm	500 mm
WADE-300T/6000	300 T	6,000 mm	570 mm	500 mm

Model	Pressing force	Bending length	Open height	Throat depth
WC67K-30t/1600	30 T	1,600 mm	335 mm	200 mm
WC67K/E-30t/2000	30 T	2,000 mm	335 mm	200 mm
WC67K/E-40t/2500	40 T	2,500 mm	355 mm	250 mm
WC67K-63t/2500	63 T	2,500 mm	370 mm	250 mm
WC67K/E-80t/2500	80 T	2,500 mm	380 mm	250 mm
WC67K/E-100t/2500	100 T	2,500 mm	430 mm	320 mm
WC67K-100t/3200	100 T	3,200 mm	430 mm	320 mm
WC67E-100t/4000	100 T	4,000 mm	430 mm	420 mm
WC67K-100t/4000	100 T	4,000 mm	430 mm	420 mm
WC67K/E-125t/2500	125 T	2,500 mm	430 mm	320 mm
WC67K-125t/3200	125 T	3,200 mm	430 mm	320 mm
WC67E-125t/4000	125 T	4,000 mm	430 mm	420 mm
WC67K-125t/4000	125 T	4,000 mm	430 mm	420 mm
WC67K/E-125t/5000	125 T	5,000 mm	430 mm	320 mm
WC67K/E-125t/6000	125 T	6,000 mm	430 mm	320 mm
WC67K/E-160t/2500	160 T	2,500 mm	480 mm	350 mm
WC67K-160t/3200	160 T	3,200 mm	480 mm	350 mm
WC67K-160t/4000	160 T	4,000 mm	480 mm	350 mm
WC67K/E-160t/5000	160 T	5,000 mm	480 mm	350 mm
WC67K/E-160t/6000	160 T	6,000 mm	480 mm	350 mm
WC67K-200T/3200	200 T	3,200 mm	480 mm	350 mm
WC67K-200T/4000	200 T	4,000 mm	480 mm	350 mm
WC67K/E-200T/5000	200 T	5,000 mm	480 mm	350 mm
WC67K/E-200T/6000	200 T	6,000 mm	480 mm	350 mm
WC67K-250T/3200	250 T	3,200 mm	580 mm	400 mm
WC67K-250T/4000	250 T	4,000 mm	580 mm	400 mm
WC67K/E-250T/5000	250 T	5,000 mm	580 mm	400 mm
WC67K/E-250T/6000	250 T	6,000 mm	580 mm	400 mm
WC67K-300T/3200	300 T	3,200 mm	580 mm	400 mm
WC67K-300T/4000	300 T	4,000 mm	580 mm	400 mm
WC67K/E-300T/5000	300 T	5,000 mm	580 mm	400 mm
WC67K/E-300T/6000	300 T	6,000 mm	580 mm	400 mm
WC67K/E-400T/3200	400 T	3,200 mm	580 mm	400 mm
WC67K/E-400T/4000	400 T	4,000 mm	580 mm	400 mm
WC67K/E-400T/5000	400 T	5,000 mm	580 mm	400 mm
WC67K/E-400T/6000	400 T	6,000 mm	580 mm	400 mm

Model	Pressing force	Bending length	Open height	Throat depth
WADG-10T/500	10 T	500 mm	420 mm	200 mm
WADG-20T/800	20 T	800 mm	420 mm	250 mm
WADG-30T/1250	30 T	1,250 mm	420 mm	250 mm
WADG-40T/1300	40 T	1,300 mm	420 mm	255 mm
WADG-40T/1600	40 T	1,600 mm	420 mm	255 mm
WADG-50T/1600	50 T	1,600 mm	420 mm	255 mm
WADG-60T/2000	60 T	2,000 mm	470 mm	300 mm
WADG-80T/2500	80 T	2,500 mm	470 mm	460 mm
WADG-100T/3200	100 T	3,200 mm	470 mm	460 mm
WADG-160T/3200	160 T	3,200 mm	520 mm	460 mm

Model	Pressing force	Bending length	Open height	Throat depth
WAD-400T/4000	400 T	4,000 mm	610 mm	500 mm
WAD-400T/5000	400 T	5,000 mm	610 mm	500 mm
WAD-400T/6000	400 T	6,000 mm	610 mm	500 mm
WAD-500T/4000	500 T	4,000 mm	610 mm	500 mm
WAD-500T/5000	500 T	5,000 mm	610 mm	500 mm
WAD-500T/6000	500 T	6,000 mm	610 mm	500 mm
WAD-600T/4000	600 T	4,000 mm	650 mm	600 mm
WAD-600T/5000	600 T	5,000 mm	650 mm	600 mm
WAD-600T/6000	600 T	6,000 mm	650 mm	600 mm
WAD-800T/4000	800 T	4,000 mm	800 mm	600 mm
WAD-800T/5000	800 T	5,000 mm	800 mm	600 mm
WAD-800T/6000	800 T	6,000 mm	800 mm	600 mm
WAD-800T/8000	800 T	8,000 mm	800 mm	600 mm
WAD-1000T/5000	1,000 T	5,000 mm	920 mm	600 mm
WAD-1000T/6000	1,000 T	6,000 mm	920 mm	600 mm
WAD-1000T/7000	1,000 T	7,000 mm	920 mm	600 mm
WAD-1000T/8000	1,000 T	8,000 mm	920 mm	600 mm
WAD-1200T/5000	1,200 T	5,000 mm	920 mm	600 mm
WAD-1200T/6000	1,200 T	6,000 mm	920 mm	600 mm
WAD-1200T/7000	1,200 T	7,000 mm	920 mm	600 mm
WAD-1200T/8000	1,200 T	8,000 mm	920 mm	600 mm
