Learn more about ADH laser cutting machines

About ADH

Established in 2002 with machine-tool roots dating to 1984, ADH manufactures equipment in Ma'anshan, China.

ADH designs, manufactures, assembles and inspects its sheet-metal equipment, then plans delivery, training and service for each machine.

1984Machine-tool industry roots
2002ADH established
130+Countries and regions supplied
138Patent certificates
350,000 m²Manufacturing site area

The ADH Laser Cutting Range

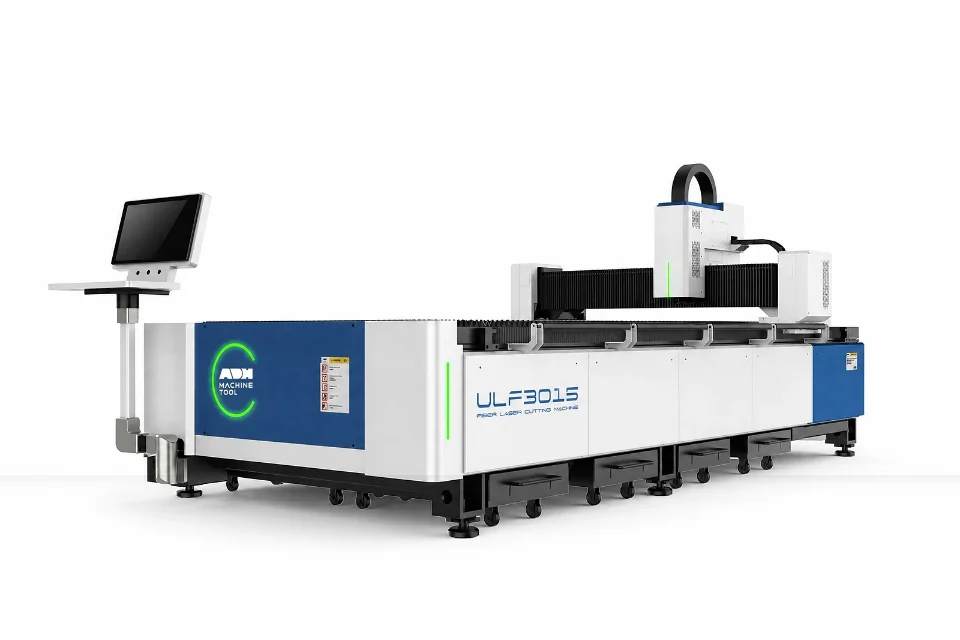

ULF

A direct-access flat-sheet laser platform.
16 models · 1.5–60 kW · 3,100–26,000 mm

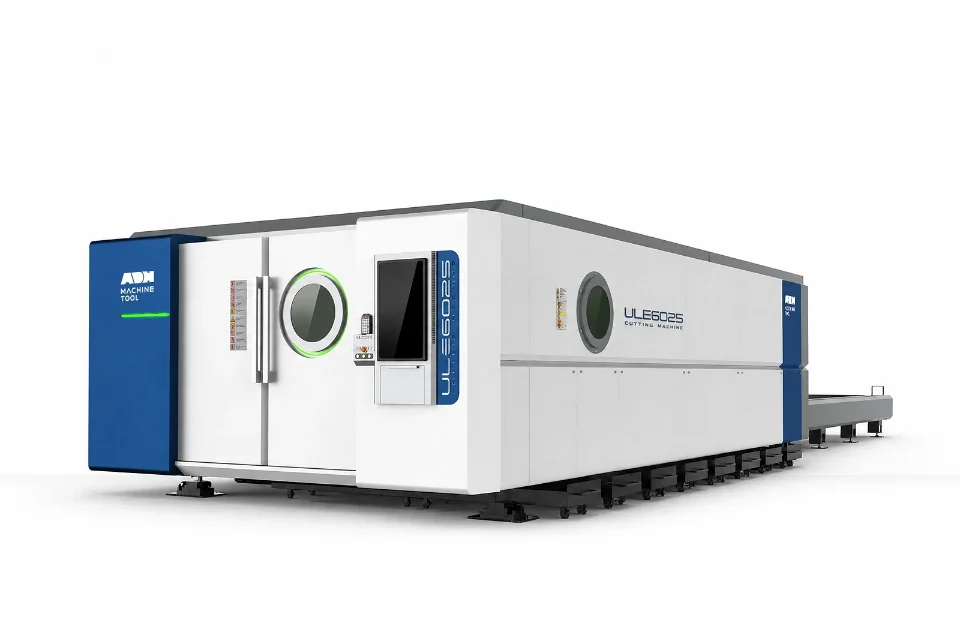

ULE

Exchange tables separate cutting from loading.
7 models · 3–40 kW · 3,100–12,500 mm

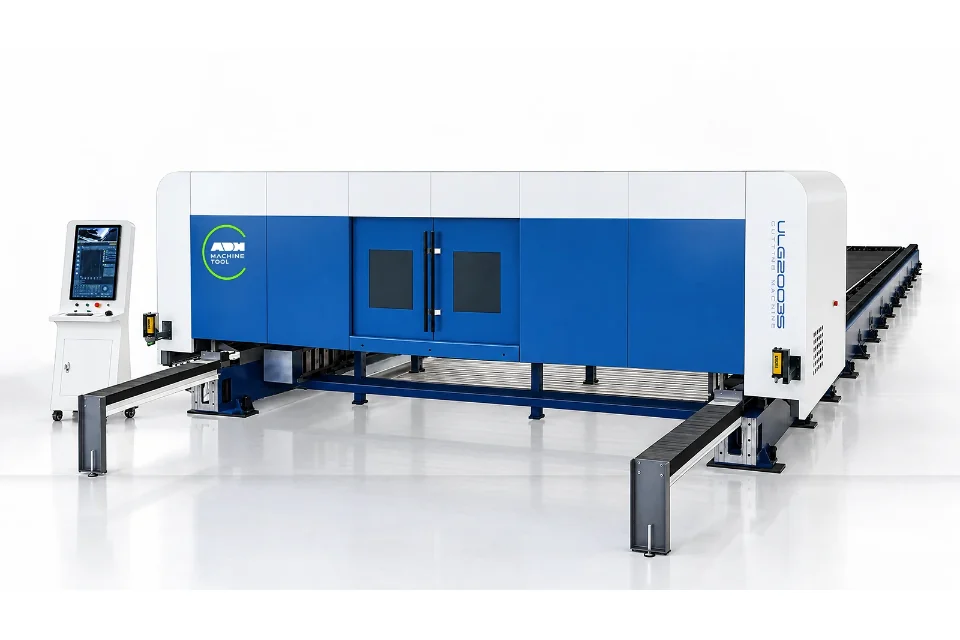

ULG

A ground-rail platform for long, heavy plate.
12 models · 12–60 kW · 13,000–26,000 mm

Specifications and images from Fiber laser cutting machines, ULF single-table fiber laser, ULE exchange-table fiber laser, ULG ground-rail fiber laser, retrieved 27 October 2026. Only flat-sheet fiber lasers with published specification tables are listed. Not listed: ULFT and ULET (Sheet-and-tube machines; planned with tube lasers); ULT and ULH (Tube and H-beam lasers; planned with tube lasers); ULJM5035 (A 300 × 500 mm precision micro-cutting platform, not a sheet-metal cutter). ADH states that it has supplied 130+ countries and regions, so its models are listed in every catalog region.

Model	Working area mm	Laser power kW	Positioning speed m/min	Sheet weight kg
ULF-G 3015G	3,100 × 1,530	1.5–6	90	900
ULF-G 4015G	4,100 × 1,530	1.5–6	90	1,200
ULF-G 6015G	6,100 × 1,530	1.5–6	90	1,800
ULF-G 4020G	4,100 × 2,050	1.5–6	90	1,600
ULF-G 6020G	6,100 × 2,050	1.5–6	90	2,400
ULF-E 3015E	3,100 × 1,530	1.5–12	140	1,100
ULF-E 4015E	4,100 × 1,530	1.5–12	140	1,500
ULF-E 6015E	6,100 × 1,530	1.5–12	140	2,200
ULF-E 4022E	4,100 × 2,200	1.5–12	140	2,000
ULF-E 6022E	6,100 × 2,200	1.5–12	140	3,000
ULF-E 6026E	6,100 × 2,600	6–60	140	3,900
ULF-E 8026E	8,000 × 2,600	6–60	140	5,200
ULF-E 13026E	13,000 × 2,600	6–60	140	14,000
ULF-E 13032E	13,000 × 3,200	6–60	140	18,000
ULF-E 26026E	26,000 × 2,600	6–60	140	28,000
ULF-E 26032E	26,000 × 3,200	6–60	140	36,000

Model	Working area mm	Laser power kW	Positioning speed m/min
ULE-E 3015E	3,100 × 1,550	3–20	140
ULE-E 4015E	4,100 × 1,550	3–20	140
ULE-E 4020E	4,100 × 2,050	3–20	140
ULE-E 6020E	6,100 × 2,050	3–20	140
ULE-E 6026E	6,100 × 2,600	6–40	140
ULE-E 8026E	8,100 × 2,600	6–40	140
ULE-E 12526E	12,500 × 2,600	6–40	140

Model	Working area mm	Laser power kW	Positioning speed m/min	Sheet weight kg
ULG13035C	13,000 × 3,500	12–60	70	35,700
ULG13040C	13,000 × 4,000	12–60	60	40,800
ULG13045C	13,000 × 4,500	12–60	50	45,900
ULG26035C	26,000 × 3,500	12–60	70	71,400
ULG26040C	26,000 × 4,000	12–60	60	81,600
ULG26045C	26,000 × 4,500	12–60	50	91,800
ULG13035A	13,000 × 3,500	12–60	80	35,700
ULG13040A	13,000 × 4,000	12–60	70	40,800
ULG13045A	13,000 × 4,500	12–60	60	45,900
ULG26035A	26,000 × 3,500	12–60	80	71,400
ULG26040A	26,000 × 4,000	12–60	70	81,600
ULG26045A	26,000 × 4,500	12–60	60	91,800
