Learn more about HACO press brakes

About HACO

HACO, headquartered in Ardooie, Belgium, has built machines for sheet metal and woodworking since 1965. Its sheet metal range covers press brakes, shears, fiber lasers and robot bending cells, and its FASTBEND press brake control is developed and manufactured by HACO itself.

The press brake line runs from the preconfigured OptiForm through the configurable SynchroMaster and the premium EuroMaster-S to HDSY heavy-duty machines built to order. HACO serves customers through local subsidiaries, including offices in France, Slovakia, India, the USA and Australia.

1965Founded
4Press brake series

The HACO Press Brake Range

OptiForm

Entry-level hydraulic press brake with EASYBEND 2D multi-touch control.
2 models · 150–250 T · 3,100–4,100 mm

SynchroMaster

Configurable hydraulic CNC press brake for small and medium series.
36 models · 75–400 T · 2,100–6,000 mm

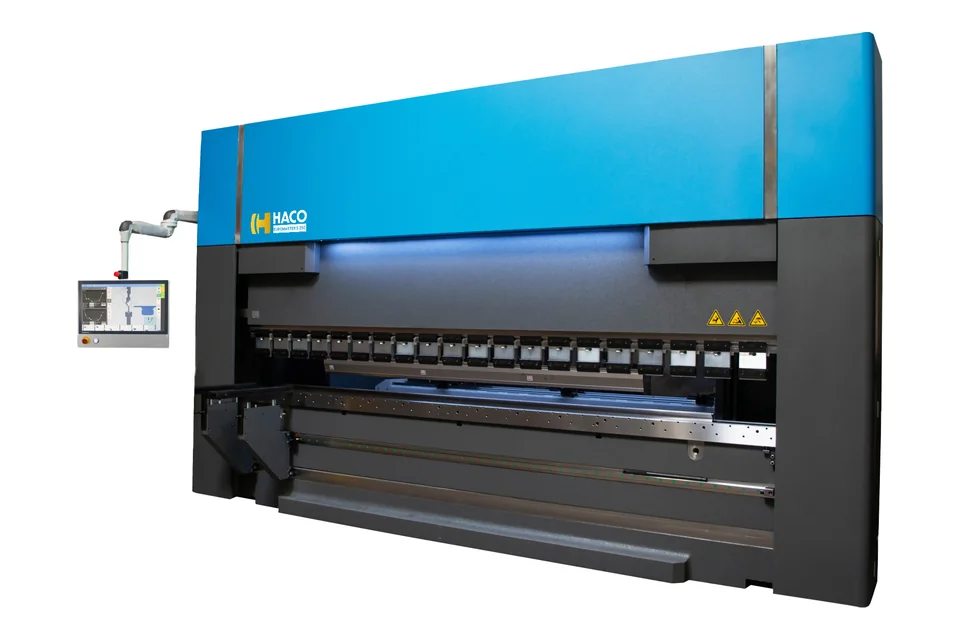

EuroMaster-S

Premium hydraulic press brake for series production, FASTBEND-2D MT control.
36 models · 75–400 T · 2,100–6,000 mm

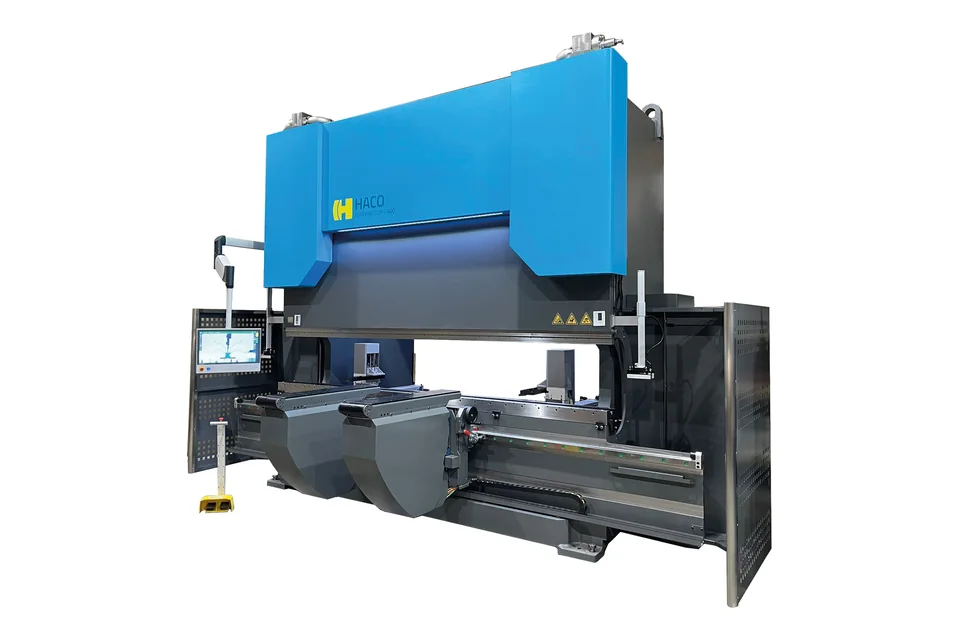

HDSY

Heavy Duty Synchro press brakes built to order, 400 to 2,000 t.
Built to order, 400–2,000 t; HACO publishes no standard models.

Company information, specifications and images from HACO sheet metal machines, About HACO, OptiForm hydraulic press brake, SynchroMaster hydraulic CNC press brake, EuroMaster-S hydraulic press brake, retrieved 28 October 2026. HACO says its international presence and local subsidiaries give customers global expertise with local service; its site has country pages across Europe, North and South America, Asia, Oceania and Africa, so its press brakes are listed in every catalog region.

Compare	Model	Pressing force	Bending length	Open height	Throat depth
	OptiForm 30150	150 T	3,100 mm	480 mm	400 mm
	OptiForm 40250	250 T	4,100 mm	480 mm	400 mm

Model	Pressing force	Bending length	Open height	Throat depth
SynchroMaster 20075	75 T	2,100 mm	520 mm	400 mm
SynchroMaster 25075	75 T	2,600 mm	520 mm	400 mm
SynchroMaster 30075	75 T	3,100 mm	520 mm	400 mm
SynchroMaster 25100	100 T	2,600 mm	520 mm	400 mm
SynchroMaster 30100	100 T	3,100 mm	520 mm	400 mm
SynchroMaster 36100	100 T	3,650 mm	520 mm	400 mm
SynchroMaster 40100	100 T	4,100 mm	520 mm	400 mm
SynchroMaster 43100	100 T	4,300 mm	520 mm	400 mm
SynchroMaster 25150	150 T	2,600 mm	520 mm	400 mm
SynchroMaster 30150	150 T	3,100 mm	520 mm	400 mm
SynchroMaster 36150	150 T	3,660 mm	520 mm	400 mm
SynchroMaster 40150	150 T	4,100 mm	520 mm	400 mm
SynchroMaster 43150	150 T	4,300 mm	520 mm	400 mm
SynchroMaster 46150	150 T	4,600 mm	520 mm	400 mm
SynchroMaster 25200	200 T	2,600 mm	520 mm	400 mm
SynchroMaster 30200	200 T	3,100 mm	520 mm	400 mm
SynchroMaster 36200	200 T	3,660 mm	520 mm	400 mm
SynchroMaster 40200	200 T	4,100 mm	520 mm	400 mm
SynchroMaster 43200	200 T	4,300 mm	520 mm	400 mm
SynchroMaster 46200	200 T	4,600 mm	520 mm	400 mm
SynchroMaster 30250	250 T	3,100 mm	520 mm	400 mm
SynchroMaster 36250	250 T	3,660 mm	520 mm	400 mm
SynchroMaster 40250	250 T	4,100 mm	520 mm	400 mm
SynchroMaster 43250	250 T	4,300 mm	520 mm	400 mm
SynchroMaster 50250	250 T	5,000 mm	520 mm	400 mm
SynchroMaster 60250	250 T	6,000 mm	520 mm	400 mm
SynchroMaster 30320	320 T	3,100 mm	620 mm	400 mm
SynchroMaster 36320	320 T	3,660 mm	620 mm	400 mm
SynchroMaster 40320	320 T	4,100 mm	620 mm	400 mm
SynchroMaster 43320	320 T	4,300 mm	620 mm	400 mm
SynchroMaster 50320	320 T	5,000 mm	620 mm	400 mm
SynchroMaster 60320	320 T	6,000 mm	620 mm	400 mm
SynchroMaster 30400	400 T	3,100 mm	620 mm	400 mm
SynchroMaster 36400	400 T	3,660 mm	620 mm	400 mm
SynchroMaster 40400	400 T	4,100 mm	620 mm	400 mm
SynchroMaster 43400	400 T	4,300 mm	620 mm	400 mm

Model	Pressing force	Bending length	Open height	Throat depth
EuroMaster-S 20075	75 T	2,100 mm	Not provided	Not provided
EuroMaster-S 25075	75 T	2,600 mm	Not provided	Not provided
EuroMaster-S 30075	75 T	3,100 mm	Not provided	Not provided
EuroMaster-S 25100	100 T	2,600 mm	Not provided	Not provided
EuroMaster-S 30100	100 T	3,100 mm	Not provided	Not provided
EuroMaster-S 36100	100 T	3,650 mm	Not provided	Not provided
EuroMaster-S 40100	100 T	4,100 mm	Not provided	Not provided
EuroMaster-S 43100	100 T	4,300 mm	Not provided	Not provided
EuroMaster-S 25150	150 T	2,600 mm	Not provided	Not provided
EuroMaster-S 30150	150 T	3,100 mm	Not provided	Not provided
EuroMaster-S 36150	150 T	3,660 mm	Not provided	Not provided
EuroMaster-S 40150	150 T	4,100 mm	Not provided	Not provided
EuroMaster-S 43150	150 T	4,300 mm	Not provided	Not provided
EuroMaster-S 46150	150 T	4,600 mm	Not provided	Not provided
EuroMaster-S 25200	200 T	2,600 mm	Not provided	Not provided
EuroMaster-S 30200	200 T	3,100 mm	Not provided	Not provided
EuroMaster-S 36200	200 T	3,660 mm	Not provided	Not provided
EuroMaster-S 40200	200 T	4,100 mm	Not provided	Not provided
EuroMaster-S 43200	200 T	4,300 mm	Not provided	Not provided
EuroMaster-S 46200	200 T	4,600 mm	Not provided	Not provided
EuroMaster-S 30250	250 T	3,100 mm	Not provided	Not provided
EuroMaster-S 36250	250 T	3,660 mm	Not provided	Not provided
EuroMaster-S 40250	250 T	4,100 mm	Not provided	Not provided
EuroMaster-S 43250	250 T	4,300 mm	Not provided	Not provided
EuroMaster-S 50250	250 T	5,000 mm	Not provided	Not provided
EuroMaster-S 60250	250 T	6,000 mm	Not provided	Not provided
EuroMaster-S 30320	320 T	3,100 mm	Not provided	Not provided
EuroMaster-S 36320	320 T	3,660 mm	Not provided	Not provided
EuroMaster-S 40320	320 T	4,100 mm	Not provided	Not provided
EuroMaster-S 43320	320 T	4,300 mm	Not provided	Not provided
EuroMaster-S 50320	320 T	5,000 mm	Not provided	Not provided
EuroMaster-S 60320	320 T	6,000 mm	Not provided	Not provided
EuroMaster-S 30400	400 T	3,100 mm	Not provided	Not provided
EuroMaster-S 36400	400 T	3,660 mm	Not provided	Not provided
EuroMaster-S 40400	400 T	4,100 mm	Not provided	Not provided
EuroMaster-S 43400	400 T	4,300 mm	Not provided	Not provided
