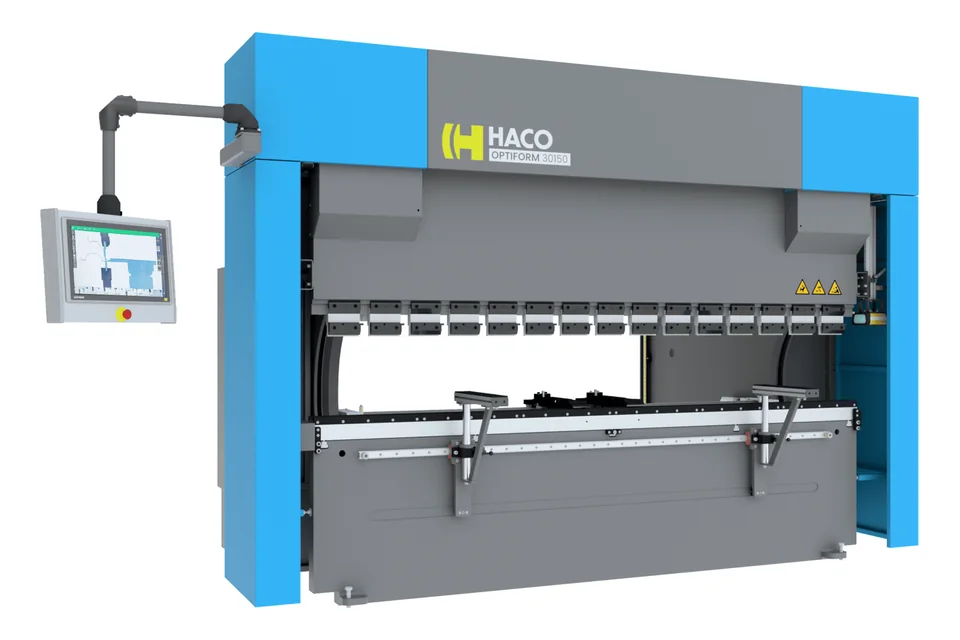

HACO OptiForm 30150 press brake
The HACO OptiForm 30150 is a hydraulic press brake with 150 t of pressing force and a 3,100 mm bending length.
Specifications
| Drive System | Hydraulic |
|---|---|
| CNC controller | EASYBEND |
| Bending length | 3,100 mm |
| Pressing force | 150 t |
| Distance between side frames | 2,600 mm |
| Maximum opening | 480 mm |
| Maximum stroke | 200 mm |
| Throat depth | 400 mm |
| Closing speed | 180 mm/s |
| Maximum working speed | 10 mm/s |
| Return speed | 125 mm/s |
Not published by HACO for this model: Synchronisation, Frame type.
In HACO’s words
“OptiForm comes standard with the EASYBEND graphical control.”
“The HACO EASYBEND is an advanced control system for press brakes, combining powerful 2D software and PC-based hardware to deliver high precision and flexibility.”
Where these figures come from
Read from the specification table in HACO’s PDF at haco.com (model “30150”) on 28 October 2026. Values are copied cell by cell and never estimated; force given in kN is divided by 10 for tonnes.
Similar machines from other makers
Within 15% of the pressing force and 10% of the bending length.
