Learn more about ADIRA press brakes

About ADIRA

ADIRA built Portugal's first mechanical shears and first hydraulic press brake in the 1960s and soon began exporting; it now describes itself as a global supplier of engineering solutions for sheet metal processing, from press brakes and guillotine shears to laser cutting and robotic cells.

Since 2017 its sole shareholder has been SC – Sonae Capital Industrials. ADIRA reports more than 10,000 special projects installed worldwide and almost 30 partners abroad.

1956Founded
10,000+Special projects installed
30+Countries served
~30Partners

The ADIRA Press Brake Range

PA

Hexa-C frame hydraulic press brake, 135 to 220 t over 3 or 4 m.
6 models · 135–220 T · 3,000–4,000 mm

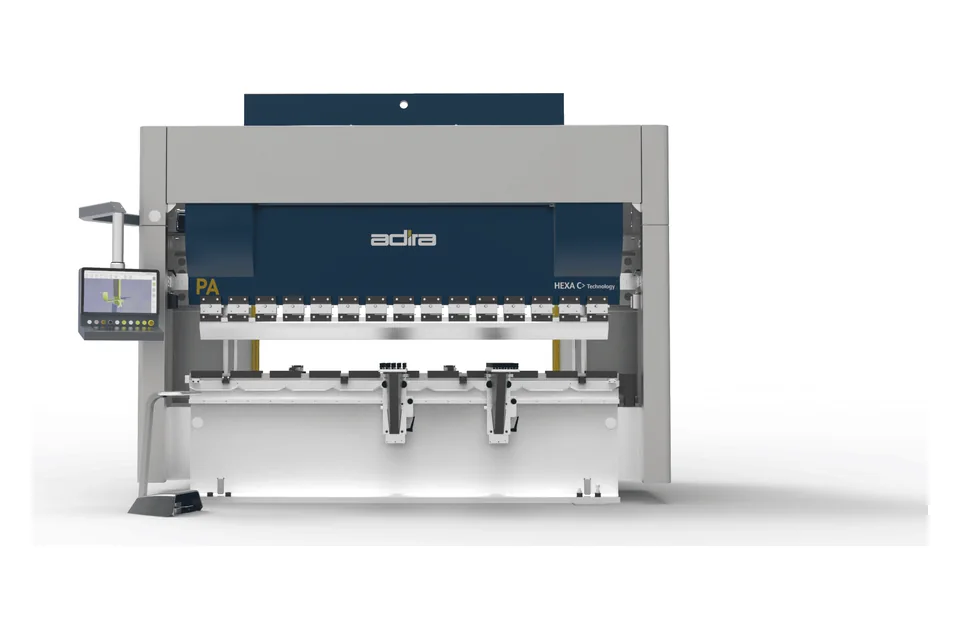

PA Plus

The PA with the Greendrive variable-speed motor and a faster return stroke.
6 models · 135–220 T · 3,000–4,000 mm

PF

Servomotor-driven hydraulics for speed and automation, 135 to 220 t.
4 models · 135–220 T · 3,000–4,000 mm

PH

Electro-hydraulic heavy-duty range, 160 to 2,000 t up to 9 m.
26 models · 160–2,000 T · 4,050–9,050 mm

BB

All-electric Bluedrive press brake, 35 and 50 t.
2 models · 35–50 T · 1,500–2,000 mm

Company information, specifications and images from ADIRA press brakes, About ADIRA, ADIRA home, Privacy policy (legal name), PA hydraulic press brake, PA Plus hydraulic press brake with Greendrive, PF Press Fast hybrid press brake, PH Press Heavy-Duty press brake, BB Blue Bender electric press brake, retrieved 28 October 2026. ADIRA says that with almost 30 partners its solutions "already reach the four corners of the world", and its partner map lists partners in Europe, North and South America, Asia, Oceania and Africa, so its models are listed in every catalog region.

Model	Pressing force	Bending length	Open height	Throat depth
PA 13530	135 T	3,000 mm	500 mm	400 mm
PA 13540	135 T	4,000 mm	500 mm	400 mm
PA 16030	160 T	3,000 mm	500 mm	400 mm
PA 16040	160 T	4,000 mm	500 mm	400 mm
PA 22030	220 T	3,000 mm	500 mm	400 mm
PA 22040	220 T	4,000 mm	500 mm	400 mm

Model	Pressing force	Bending length	Open height	Throat depth
PA Plus 13530	135 T	3,000 mm	500 mm	400 mm
PA Plus 13540	135 T	4,000 mm	500 mm	400 mm
PA Plus 16030	160 T	3,000 mm	500 mm	400 mm
PA Plus 16040	160 T	4,000 mm	500 mm	400 mm
PA Plus 22030	220 T	3,000 mm	500 mm	400 mm
PA Plus 22040	220 T	4,000 mm	500 mm	400 mm

Model	Pressing force	Bending length	Open height	Throat depth
PF 13530	135 T	3,000 mm	630 mm	400 mm
PF 16030	160 T	3,000 mm	630 mm	400 mm
PF 16040	160 T	4,000 mm	630 mm	400 mm
PF 22040	220 T	4,000 mm	615 mm	400 mm

Model	Pressing force	Bending length	Open height	Throat depth
PH 16046	160 T	Not provided	500 mm	630 mm
PH 22060	220 T	6,050 mm	500 mm	400 mm
PH 30040	300 T	4,050 mm	530 mm	400 mm
PH 30060	300 T	6,050 mm	530 mm	400 mm
PH 30070	300 T	7,050 mm	530 mm	400 mm
PH 40040	400 T	4,050 mm	530 mm	400 mm
PH 40060	400 T	6,050 mm	530 mm	400 mm
PH 40070	400 T	7,050 mm	530 mm	400 mm
PH 50040	500 T	4,050 mm	530 mm	400 mm
PH 50060	500 T	6,050 mm	530 mm	400 mm
PH 50070	500 T	7,050 mm	530 mm	400 mm
PH 60040	600 T	4,050 mm	600 mm	400 mm
PH 60060	600 T	6,050 mm	600 mm	400 mm
PH 60070	600 T	7,050 mm	600 mm	400 mm
PH 80060	800 T	6,050 mm	600 mm	400 mm
PH 80070	800 T	7,050 mm	600 mm	400 mm
PH 110060	1,100 T	6,050 mm	700 mm	400 mm
PH 110070	1,100 T	7,050 mm	700 mm	400 mm
PH 110080	1,100 T	8,050 mm	700 mm	400 mm
PH 135060	1,350 T	6,050 mm	700 mm	400 mm
PH 135070	1,350 T	7,050 mm	700 mm	400 mm
PH 135080	1,350 T	8,050 mm	700 mm	400 mm
PH 135090	1,350 T	9,050 mm	700 mm	400 mm
PH 160075	1,600 T	7,500 mm	1,000 mm	640 mm
PH 200070	2,000 T	7,000 mm	700 mm	500 mm
PH 200080	2,000 T	8,000 mm	700 mm	500 mm

Compare	Model	Pressing force	Bending length	Open height	Throat depth
	BB 3515	35 T	1,500 mm	480 mm	400 mm
	BB 5020	50 T	2,000 mm	480 mm	400 mm
