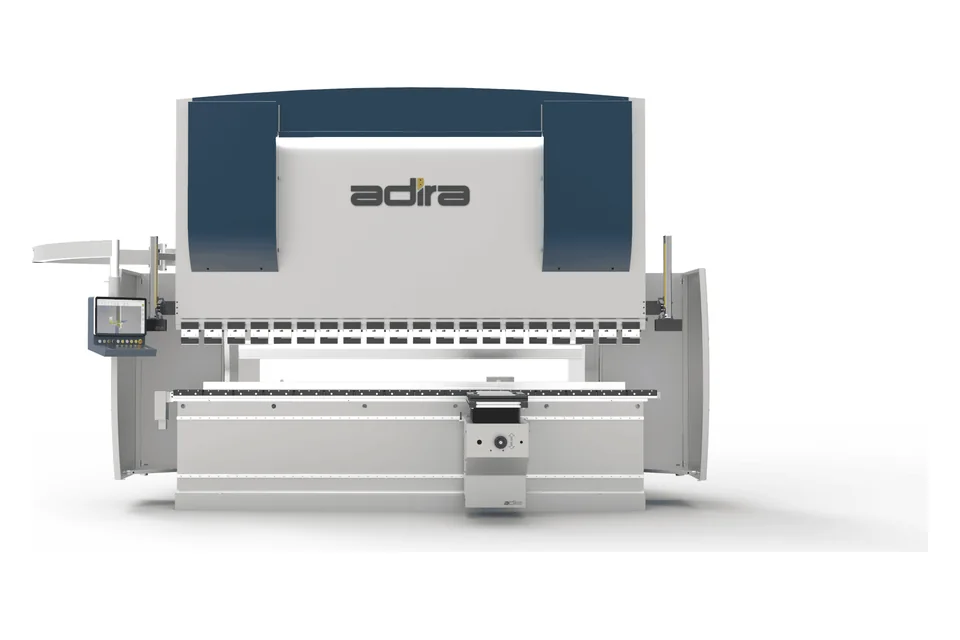

ADIRA PH 200080 press brake
The ADIRA PH 200080 is a hydraulic press brake with 2,000 t of pressing force and an 8,000 mm bending length.
Specifications
| Drive System | Hydraulic |
|---|---|
| CNC controller | Adcontrol 40 |
| Bending length | 8,000 mm |
| Pressing force | 2,000 t |
| Distance between side frames | 6,500 mm |
| Maximum opening | 700 mm |
| Maximum stroke | 300 mm |
| Throat depth | 500 mm |
| Closing speed | 80 mm/s |
| Maximum working speed | 9 mm/s |
| Return speed | 95 mm/s |
Not published by ADIRA for this model: Synchronisation, Frame type.
In ADIRA’s words
“Adcontrol 40 standard”
Where these figures come from
Read from the specification table in ADIRA’s PDF at adira.pt (model “200080”) on 28 October 2026. Values are copied cell by cell and never estimated; force given in kN is divided by 10 for tonnes.
