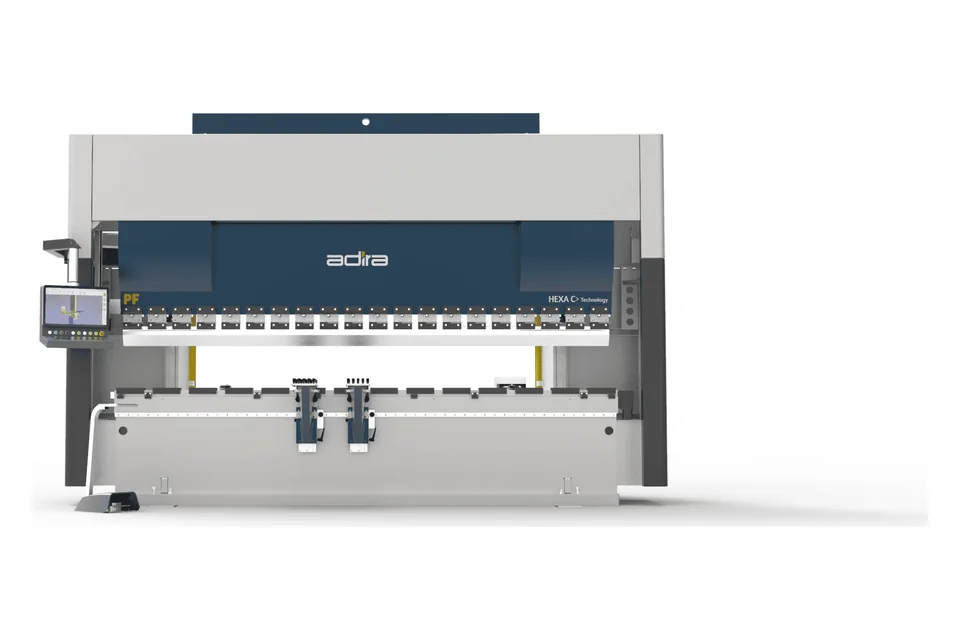

ADIRA PF 13530 press brake
The ADIRA PF 13530 is a hybrid press brake with 135 t of pressing force and a 3,000 mm bending length.
Specifications
| Drive System | Hybrid |
|---|---|
| CNC controller | ESA AD75 |
| Bending length | 3,000 mm |
| Pressing force | 135 t |
| Distance between side frames | 2,550 mm |
| Maximum opening | 630 mm |
| Maximum stroke | 400 mm |
| Throat depth | 400 mm |
| Closing speed | 180 mm/s |
| Return speed | 180 mm/s |
Not published by ADIRA for this model: Synchronisation, Frame type, Maximum working speed.
In ADIRA’s words
“ESA AD75 standard”
Where these figures come from
Read from the specification table in ADIRA’s PDF at adira.pt (model “13530”) on 28 October 2026. Values are copied cell by cell and never estimated; force given in kN is divided by 10 for tonnes.
Similar machines from other makers
Within 15% of the pressing force and 10% of the bending length.
