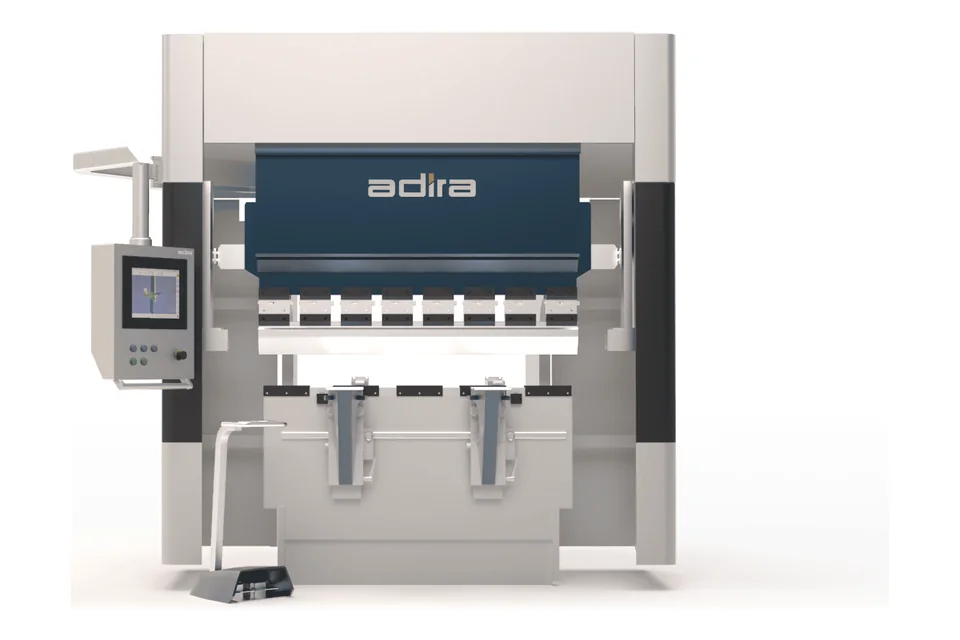

ADIRA BB 5020 press brake
The ADIRA BB 5020 is an electric press brake with 50 t of pressing force and a 2,000 mm bending length.
Specifications
| Drive System | Electric |
|---|---|
| CNC controller | ESA AD20 |
| Bending length | 2,000 mm |
| Pressing force | 50 t |
| Distance between side frames | 1,550 mm |
| Maximum opening | 480 mm |
| Maximum stroke | 250 mm |
| Throat depth | 400 mm |
| Closing speed | 130 mm/s |
| Maximum working speed | 10 mm/s |
| Return speed | 130 mm/s |
Not published by ADIRA for this model: Synchronisation, Frame type.
In ADIRA’s words
“ESA AD20 (4 axes) standard”
Where these figures come from
Read from the specification table in ADIRA’s PDF at adira.pt (model “BB 5020”) on 28 October 2026. Values are copied cell by cell and never estimated; force given in kN is divided by 10 for tonnes.
Similar machines from other makers
Within 15% of the pressing force and 10% of the bending length.
