Learn more about SENFENG press brakes

About SENFENG

SENFENG has more than 20 years of R&D, sales and global service, with a product chain covering cutting, bending, welding, cleaning, cladding and automated lines.

It develops core components in-house, including laser sources, processing heads and operating systems; its Lingang manufacturing base in Jinan opened in 2015.

2004Founded
60,000+Machines sold worldwide
100+Countries and regions
700+Technical patents

The SENFENG Press Brake Range

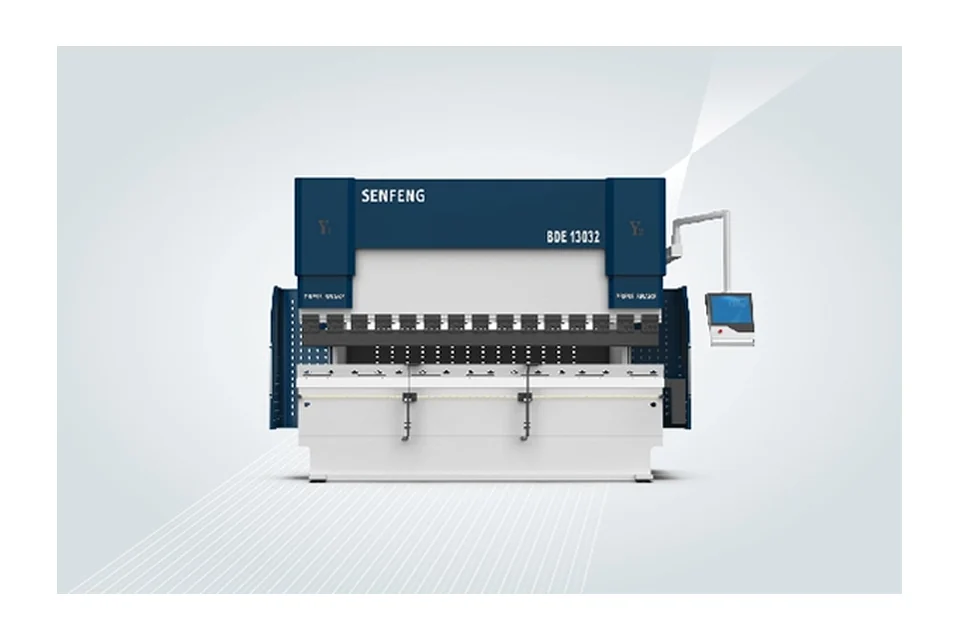

Hybrid

Electro-hydraulic servo hybrid, 50 to 600 t.
6 models · 50–600 T · 1,600–6,000 mm

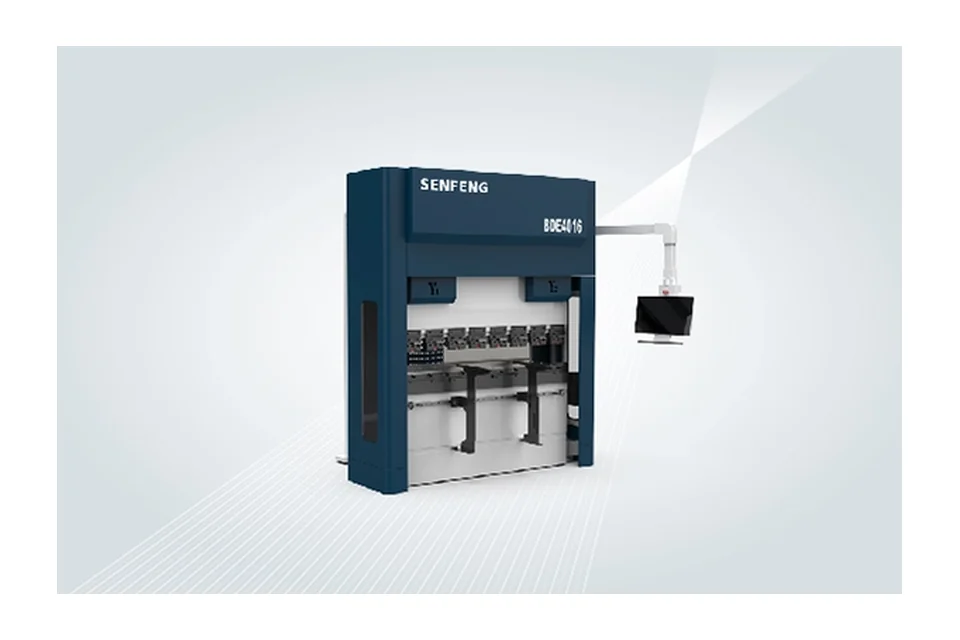

All-electric

Motor-driven ram, 6 to 130 t.
6 models · 6–130 T · 400–3,200 mm

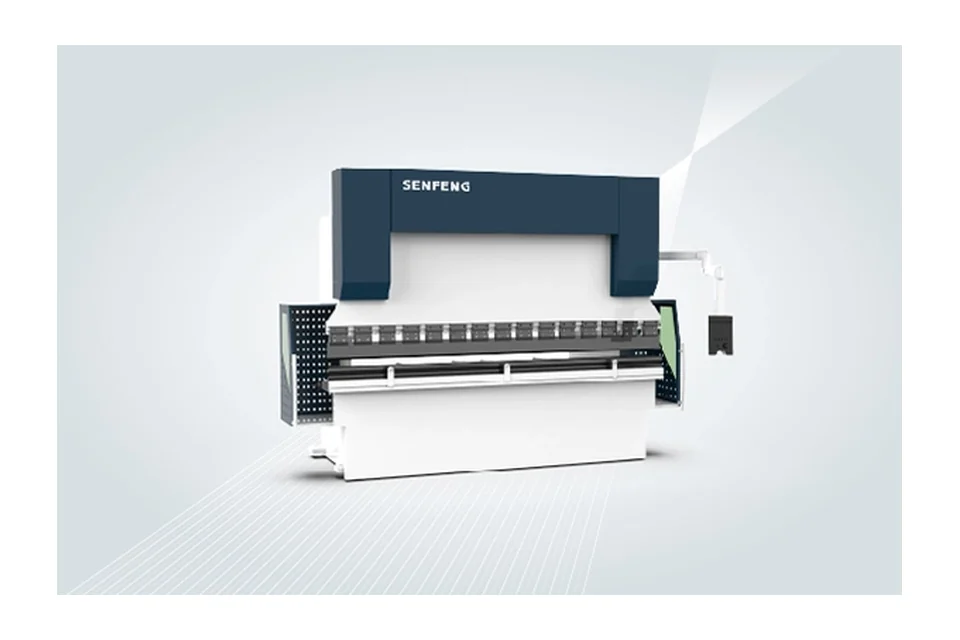

Torsion bar

Mechanical torsion-bar synchronisation, 40 to 250 t.
7 models · 40–250 T · 1,600–4,100 mm

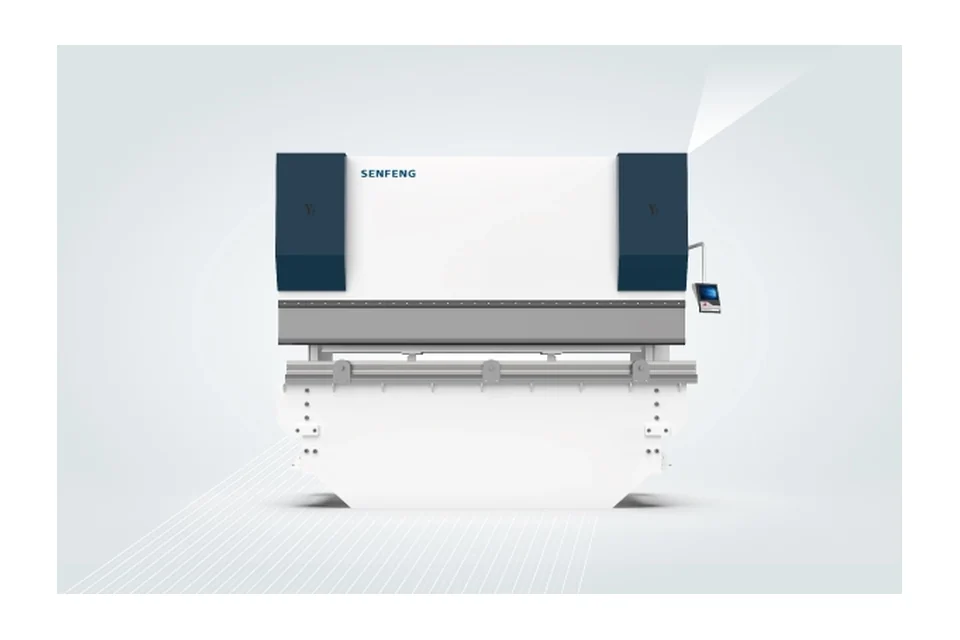

High-tonnage

400 to 2,000 t for heavy plate, DELEM control.
6 models · 400–2,000 T · 6,000–10,000 mm

Company information, specifications and images from SENFENG products, About SENFENG, Electro-hydraulic hybrid press brake, All-electric press brake, Torsion bar press brake, High-tonnage press brake, retrieved 27 October 2026. SENFENG states that it serves customers in more than 100 countries and regions on six continents, so its models are listed in every catalog region.

Model	Pressing force	Bending length	Open height	Throat depth
Hybrid BDE5016	50 T	1,600 mm	460 mm	205 mm
Hybrid BDE10032	100 T	3,200 mm	480 mm	400 mm
Hybrid BDE10042	100 T	4,200 mm	480 mm	400 mm
Hybrid BDE20060	200 T	6,000 mm	480 mm	400 mm
Hybrid BDE25032	250 T	3,200 mm	500 mm	400 mm
Hybrid BDE60060	600 T	6,000 mm	670 mm	600 mm

Model	Pressing force	Bending length	Open height	Throat depth
All-electric BDE0604	6 T	400 mm	430 mm	160 mm
All-electric BDE2010	20 T	1,000 mm	430 mm	300 mm
All-electric BDE4016	40 T	1,600 mm	480 mm	200 mm
All-electric BDE6020	60 T	2,000 mm	470 mm	300 mm
All-electric BDE10025	100 T	2,500 mm	490 mm	400 mm
All-electric BDE13032	130 T	3,200 mm	480 mm	400 mm

Model	Pressing force	Bending length	Open height	Throat depth
Torsion bar BDE4016	40 T	1,600 mm	430 mm	250 mm
Torsion bar BDE7025	70 T	2,500 mm	430 mm	300 mm
Torsion bar BDE10041	100 T	4,100 mm	460 mm	400 mm
Torsion bar BDE13032	130 T	3,200 mm	460 mm	400 mm
Torsion bar BDE17041	170 T	4,100 mm	485 mm	400 mm
Torsion bar BDE20032	200 T	3,200 mm	485 mm	400 mm
Torsion bar BDE25041	250 T	4,100 mm	485 mm	400 mm

Model	Pressing force	Bending length	Open height	Throat depth
High-tonnage BDE40060	400 T	6,000 mm	Not provided	500 mm
High-tonnage BDE60060	600 T	6,000 mm	Not provided	600 mm
High-tonnage BDE80060	800 T	6,000 mm	Not provided	700 mm
High-tonnage BDE100080	1,000 T	8,000 mm	Not provided	800 mm
High-tonnage BDE140080	1,400 T	8,000 mm	Not provided	1,000 mm
High-tonnage BDE2000100	2,000 T	10,000 mm	Not provided	1,000 mm
