Learn more about Yawei press brakes

About Yawei

Founded in 1956, Yawei was the first listed company in China's metal-forming machine tool industry (Shenzhen, stock code 002559) and supplies digital, flexible and automated sheet metal processing solutions.

It has more than 2,000 employees on a 500,000 m² site, over 60 domestic offices and sales agencies in more than 60 countries.

1956Founded
2,000+Employees
60+Countries with sales agencies
500,000 m²Site area

The Yawei Press Brake Range

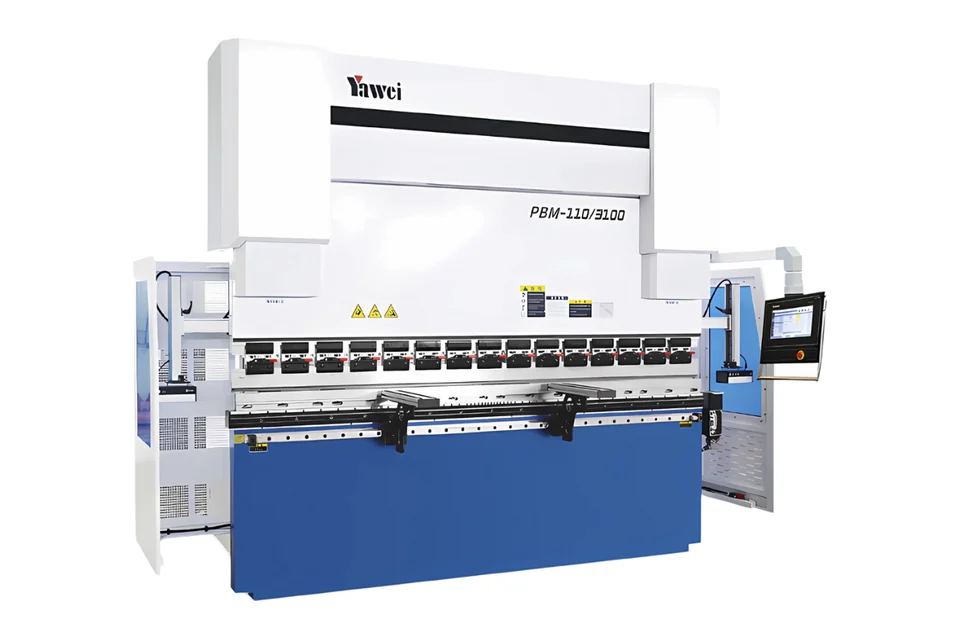

PBM

Oil-electric hybrid drive with pump-controlled synchronisation.
6 models · 110–220 T · 3,100–4,100 mm

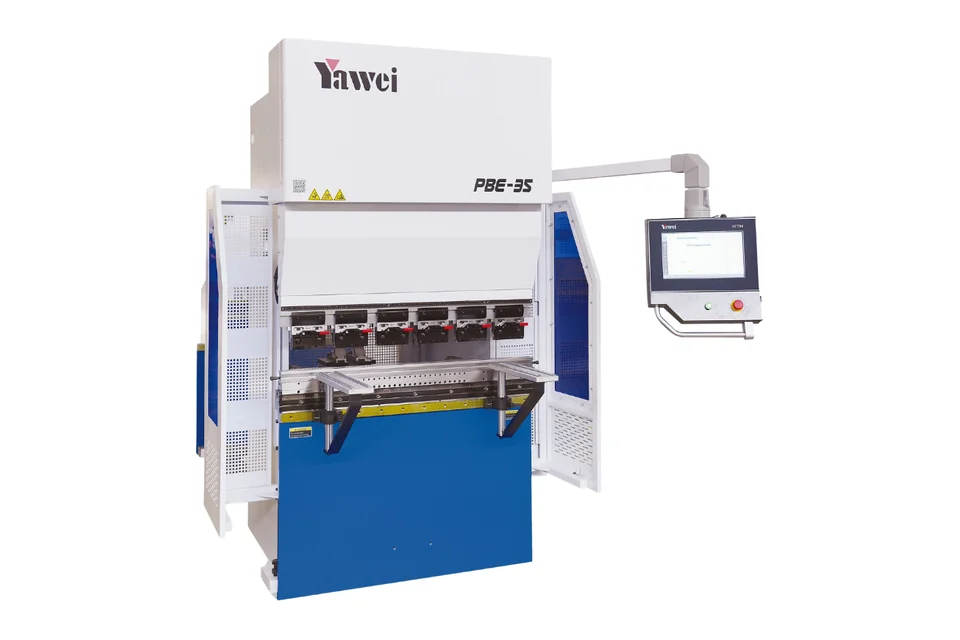

PBE

Fully electric and oil-free, for small and medium-sized parts.
6 models · 25–110 T · 850–3,100 mm

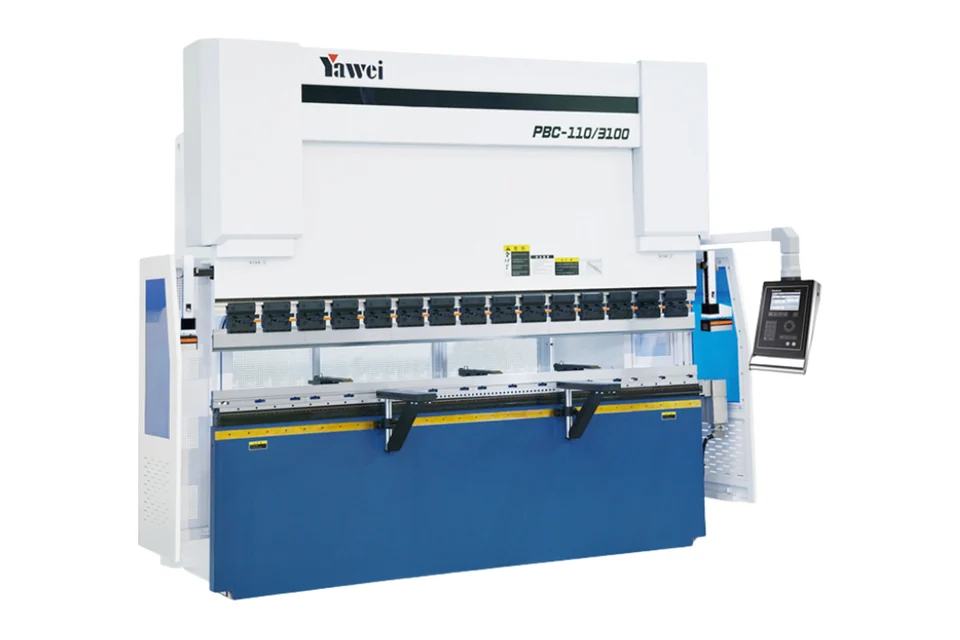

PBC

Point-by-point mechanical crowning and a dual-rail ram guide.
8 models · 50–220 T · 2,050–4,100 mm

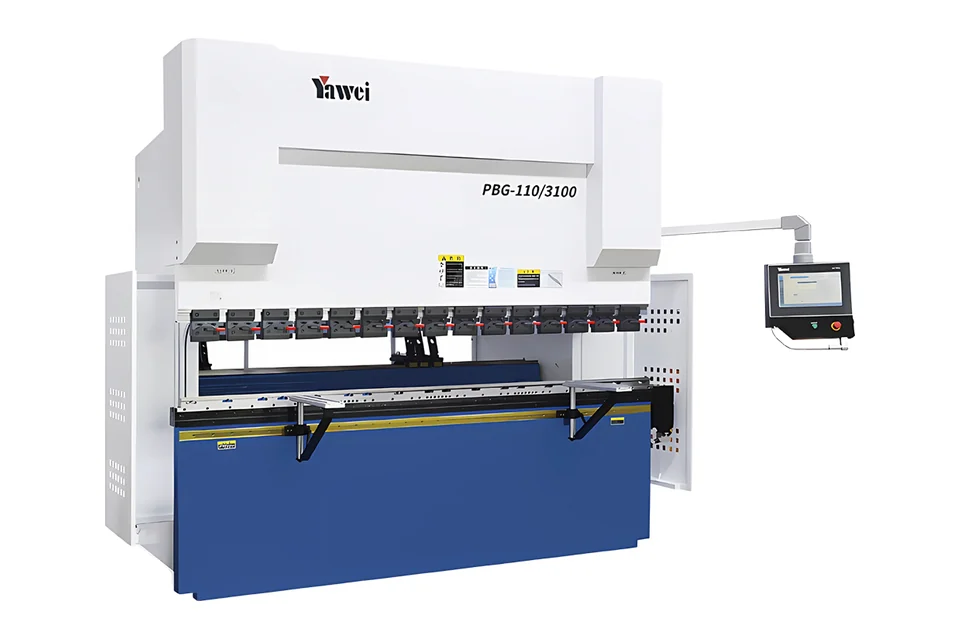

PBG

Dual servo motors with dual oil pumps, pipeless hydraulics.
7 models · 110–220 T · 3,100–4,500 mm

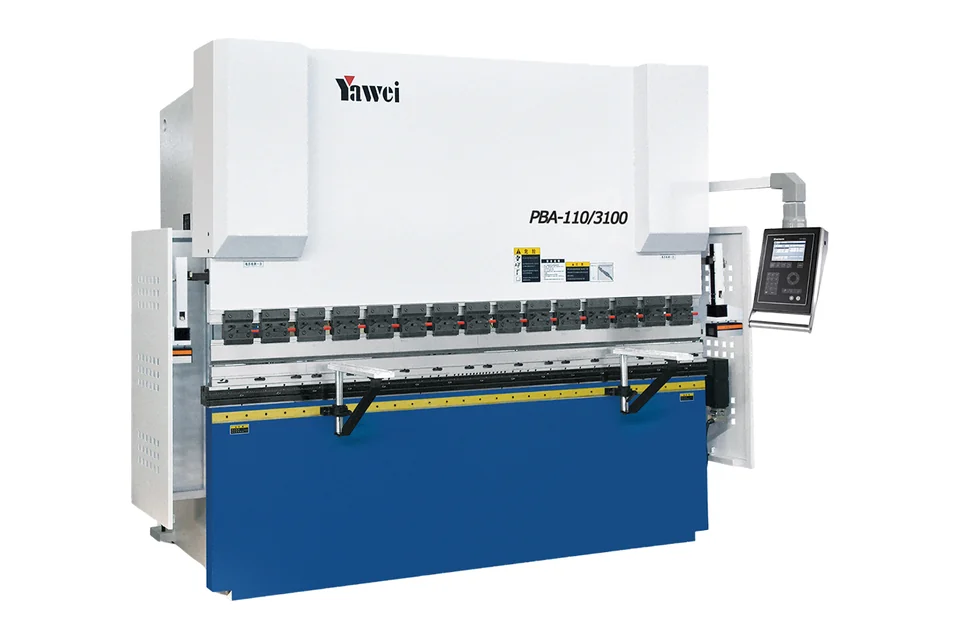

PBA

Closed-loop electro-hydraulic servo synchronisation from Germany.
11 models · 35–300 T · 1,250–4,100 mm

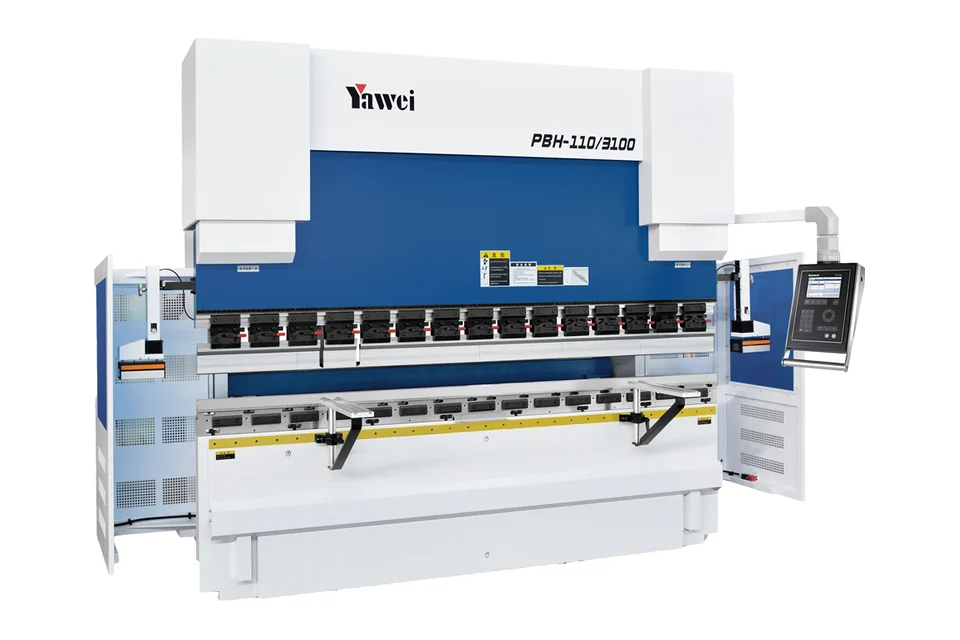

PBH

High-speed CNC press brakes from 80 to 300 tonnes.
11 models · 80–300 T · 2,550–4,100 mm

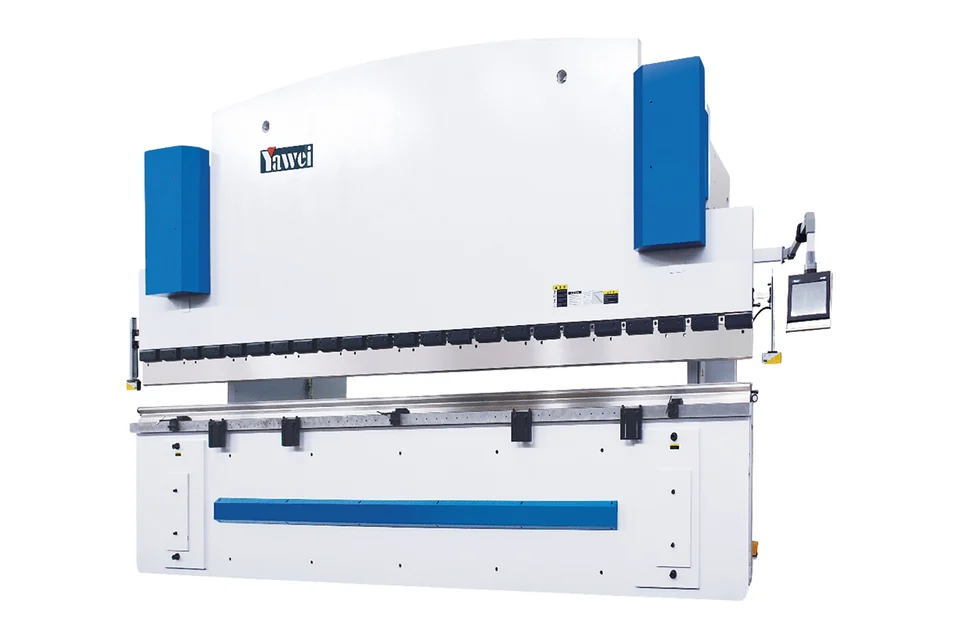

PB heavy-duty

Electro-hydraulic servo, 160 to 3,000 tonnes up to 12 m.
28 models · 160–3,000 T · 4,100–12,000 mm

Company information, specifications and images from CNC press brakes, Company profile, PBM high-end CNC press brake, PBE electric servo drive press brake, PBC high-performance CNC press brake, PBG dual servo CNC press brake, PBA high-speed CNC press brake, PBH high-speed CNC press brake, PB heavy-duty CNC press brake, retrieved 27 October 2026. Yawei states that it has sales agencies in more than 60 countries, so its lasers are listed in every catalog region.

Model	Pressing force	Bending length	Open height	Throat depth
PBM-220/4100	220 T	4,100 mm	600 mm	410 mm
PBM-220/3100	220 T	3,100 mm	600 mm	410 mm
PBM-160/4100	160 T	4,100 mm	600 mm	410 mm
PBM-160/3100	160 T	3,100 mm	600 mm	410 mm
PBM-110/4100	110 T	4,100 mm	600 mm	410 mm
PBM-110/3100	110 T	3,100 mm	600 mm	410 mm

Model	Pressing force	Bending length	Open height	Throat depth
PBED-35/1250	35 T	1,250 mm	480 mm	250 mm
PBE-110/3100	110 T	3,100 mm	600 mm	410 mm
PBE-60/2050	60 T	2,050 mm	495 mm	350 mm
PBE-35/1250	35 T	1,250 mm	480 mm	250 mm
PBE-25/850	25 T	850 mm	520 mm	250 mm
PBED-60/2050	60 T	2,050 mm	495 mm	350 mm

Model	Pressing force	Bending length	Open height	Throat depth
PBC-50/2050	50 T	2,050 mm	495 mm	350 mm
PBC-80/2550	80 T	2,550 mm	495 mm	350 mm
PBC-110/3100	110 T	3,100 mm	600 mm	410 mm
PBC-110/4100	110 T	4,100 mm	600 mm	410 mm
PBC-160/3100	160 T	3,100 mm	600 mm	410 mm
PBC-160/4100	160 T	4,100 mm	600 mm	410 mm
PBC-220/3100	220 T	3,100 mm	600 mm	410 mm
PBC-220/4100	220 T	4,100 mm	600 mm	410 mm

Model	Pressing force	Bending length	Open height	Throat depth
PBG-110/4500 Curtain wall	110 T	4,500 mm	630 mm	550 mm
PBG-110/4100 Curtain wall	110 T	4,100 mm	630 mm	550 mm
PBG-220/4100	220 T	4,100 mm	550 mm	410 mm
PBG-220/3100	220 T	3,100 mm	550 mm	410 mm
PBG-160/4100	160 T	4,100 mm	550 mm	410 mm
PBG-160/3100	160 T	3,100 mm	550 mm	410 mm
PBG-110/3100	110 T	3,100 mm	550 mm	410 mm

Model	Pressing force	Bending length	Open height	Throat depth
PBA-300/4100	300 T	4,100 mm	580 mm	410 mm
PBA-300/3100	300 T	3,100 mm	580 mm	410 mm
PBA-220/4100	220 T	4,100 mm	550 mm	410 mm
PBA-220/3100	220 T	3,100 mm	550 mm	410 mm
PBA-160/4100	160 T	4,100 mm	550 mm	410 mm
PBA-160/3100	160 T	3,100 mm	550 mm	410 mm
PBA-110/4100	110 T	4,100 mm	550 mm	410 mm
PBA-110/3100	110 T	3,100 mm	550 mm	410 mm
PBA-63/2550	63 T	2,550 mm	480 mm	350 mm
PBA-63/2050	63 T	2,050 mm	480 mm	350 mm
PBA-35/1250	35 T	1,250 mm	450 mm	300 mm

Model	Pressing force	Bending length	Open height	Throat depth
PBH-300/4100	300 T	4,100 mm	580 mm	410 mm
PBH-300/3100	300 T	3,100 mm	580 mm	410 mm
PBH-250/4100	250 T	4,100 mm	530 mm	410 mm
PBH-250/3100	250 T	3,100 mm	530 mm	410 mm
PBH-220/4100	220 T	4,100 mm	530 mm	410 mm
PBH-220/3100	220 T	3,100 mm	530 mm	410 mm
PBH-160/4100	160 T	4,100 mm	520 mm	410 mm
PBH-110/4100	110 T	4,100 mm	520 mm	410 mm
PBH-110/3100	110 T	3,100 mm	520 mm	410 mm
PBH-80/2550	80 T	2,550 mm	480 mm	350 mm
PBH-160/3100	160 T	3,100 mm	520 mm	410 mm

Model	Pressing force	Bending length	Open height	Throat depth
PBH(A)-160/5100	160 T	5,100 mm	450 mm	410 mm
PBH(A)-220/5100	220 T	5,100 mm	450 mm	410 mm
PBH(A)-220/6100	220 T	6,200 mm	450 mm	410 mm
PBH(A)-300/5100	300 T	5,100 mm	500 mm	410 mm
PBH(A)-300/6200	300 T	6,200 mm	500 mm	410 mm
PBH(A)-400/4100	400 T	4,100 mm	520 mm	510 mm
PBH(A)-400/5100	400 T	5,100 mm	520 mm	510 mm
PBH(A)-400/6200	400 T	6,200 mm	520 mm	510 mm
PBH(A)-500/4100	500 T	4,100 mm	520 mm	510 mm
PBH(A)-500/5100	500 T	5,100 mm	520 mm	510 mm
PBH(A)-500/6200	500 T	6,200 mm	520 mm	510 mm
PBH(A)-500/8200	500 T	8,200 mm	520 mm	510 mm
PBH(A)-630/4100	630 T	4,100 mm	620 mm	510 mm
PBH(A)-630/5100	630 T	5,100 mm	620 mm	510 mm
PBH(A)-630/6200	630 T	6,200 mm	620 mm	510 mm
PBH(A)-630/8200	630 T	8,200 mm	620 mm	510 mm
PBH(A)-800/6200	800 T	6,200 mm	720 mm	610 mm
PBH(A)-800/8200	800 T	8,200 mm	720 mm	610 mm
PBH(A)-1000/6200	1,000 T	6,200 mm	720 mm	610 mm
PBH(A)-1000/8200	1,000 T	8,200 mm	720 mm	610 mm
PBH(A)-1200/6200	1,200 T	6,200 mm	720 mm	610 mm
PBH(A)-1200/8200	1,200 T	8,200 mm	720 mm	610 mm
PBH(A)-1200/12000	1,200 T	12,000 mm	720 mm	610 mm
PBH(A)-1600/8200	1,600 T	8,200 mm	720 mm	610 mm
PBH(A)-1600/12000	1,600 T	12,000 mm	1,250 mm	1,000 mm
PBH(A)-2000/12000	2,000 T	12,000 mm	1,600 mm	1,250 mm
PBH(A)-2500/12000	2,500 T	12,000 mm	1,900 mm	1,500 mm
PBH(A)-3000/12000	3,000 T	12,000 mm	1,900 mm	1,500 mm
