Learn more about Wode press brakes

About Wode

Wode has built metal-forming machinery since 1953: mechanical presses, CNC punches, shears, press brakes and hydraulic presses.

It has more than 2,500 employees, including over 270 engineers, and was listed in Singapore in 2006.

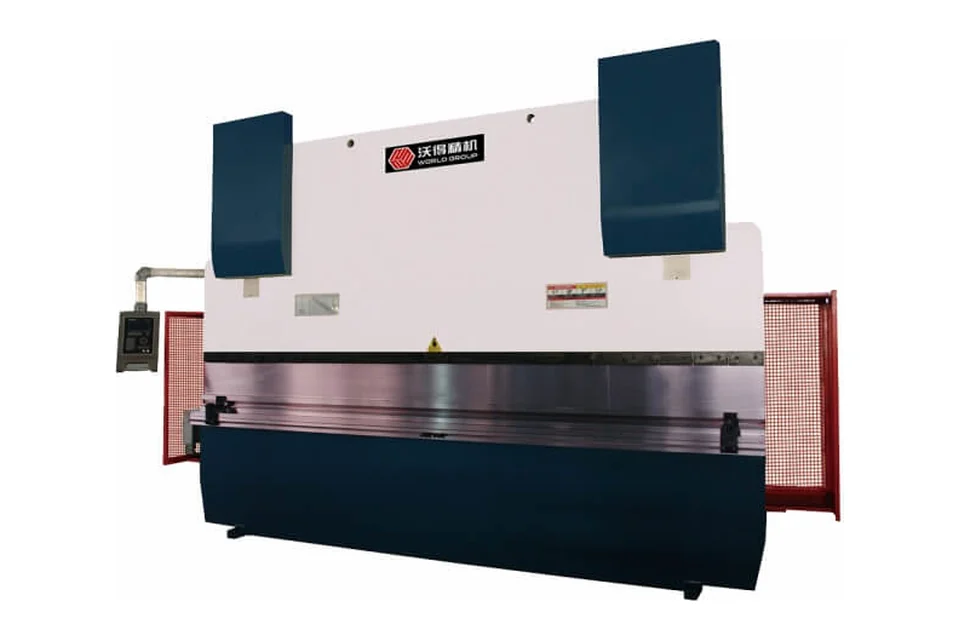

Electro-hydraulic servo synchronisation, DA53T, 63 to 630 t.
15 models · 63–630 T · 2,500–4,000 mm

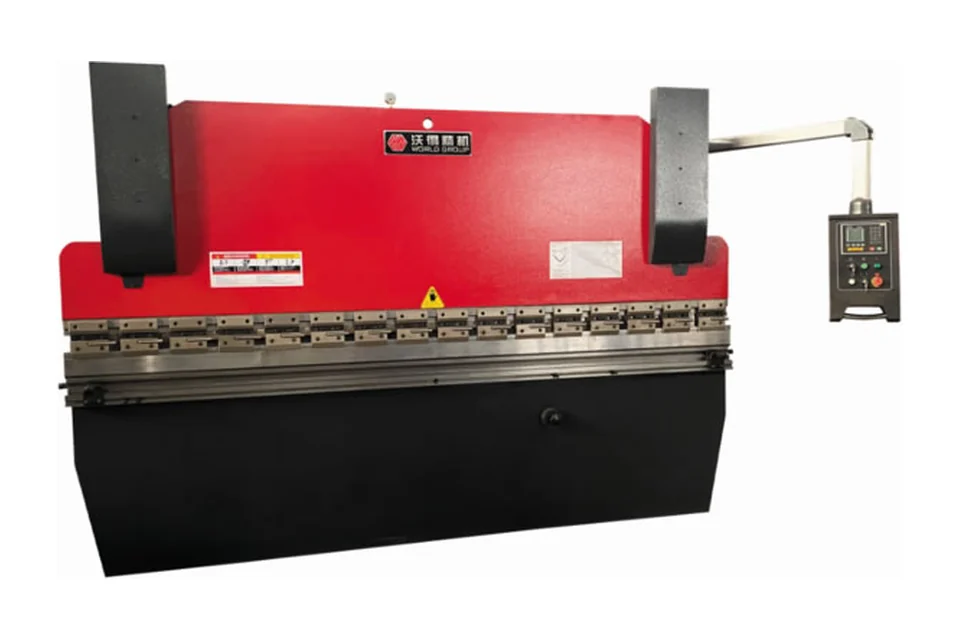

Torsion-bar synchronisation with E300p control.
5 models · 63–160 T · 2,500–4,000 mm

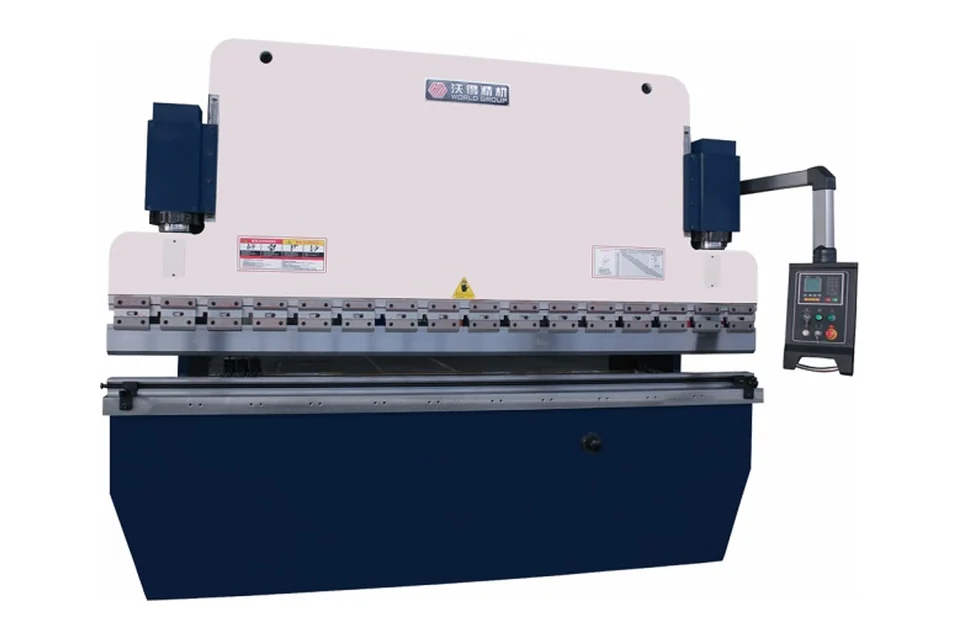

Torsion-bar NC press brakes with ESTUN E21, 63 to 400 t.
16 models · 63–400 T · 2,500–5,000 mm

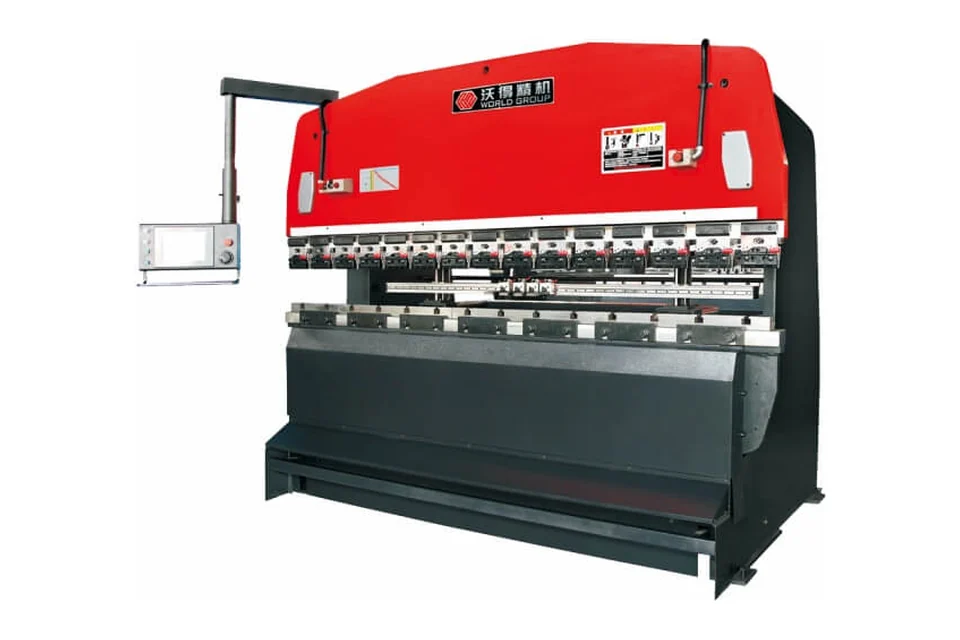

Bottom-drive hydraulics for box-shaped parts.
2 models · 50–100 T · 1,200–3,000 mm

Company information, specifications and images from Wode products (Chinese), About Wode (Chinese), WE67K CNC hydraulic press brake, WS67K CNC torsion-bar press brake, WC67Y hydraulic press brake, WM hydraulic press brake, retrieved 27 October 2026. Wode states that its products are sold to Southeast Asia, South America, Europe and South Africa, so its models are listed in those catalog regions.

Model	Pressing force	Bending length	Open height	Throat depth
WE67K-63/2500	63 T	2,500 mm	385 mm	300 mm
WE67K-63/3200	63 T	3,200 mm	385 mm	300 mm
WE67K-100/2500	100 T	2,500 mm	420 mm	400 mm
WE67K-100/3200	100 T	3,200 mm	420 mm	400 mm
WE67K-100/4000	100 T	4,000 mm	420 mm	400 mm
WE67K-160/2500	160 T	2,500 mm	410 mm	400 mm
WE67K-160/3200	160 T	3,200 mm	410 mm	400 mm
WE67K-160/4000	160 T	4,000 mm	410 mm	400 mm
WE67K-200/3200	200 T	3,200 mm	500 mm	400 mm
WE67K-200/4000	200 T	4,000 mm	500 mm	400 mm
WE67K-250/3200	250 T	3,200 mm	530 mm	400 mm
WE67K-250/4000	250 T	4,000 mm	530 mm	400 mm
WE67K-320/4000	320 T	4,000 mm	550 mm	400 mm
WE67K-400/4000	400 T	4,000 mm	570 mm	400 mm
WE67K-630/4000	630 T	4,000 mm	650 mm	500 mm

Model	Pressing force	Bending length	Open height	Throat depth
WS67K-63/2500	63 T	2,500 mm	350 mm	255 mm
WS67K-100/2500	100 T	2,500 mm	420 mm	320 mm
WS67K-100/3200	100 T	3,200 mm	420 mm	320 mm
WS67K-160/3200	160 T	3,200 mm	435 mm	320 mm
WS67K-160/4000	160 T	4,000 mm	410 mm	400 mm

Model	Pressing force	Bending length	Open height	Throat depth
WC67Y-63x2500	63 T	2,500 mm	350 mm	250 mm
WC67Y-100x2500	100 T	2,500 mm	390 mm	320 mm
WC67Y-100x3200	100 T	3,200 mm	390 mm	320 mm
WC67Y-100x4000	100 T	4,000 mm	390 mm	320 mm
WC67Y-160x2500	160 T	2,500 mm	450 mm	320 mm
WC67Y-160x3200	160 T	3,200 mm	450 mm	320 mm
WC67Y-160x4000	160 T	4,000 mm	450 mm	320 mm
WC67Y-200×2500	200 T	2,500 mm	500 mm	350 mm
WC67Y-200x3200	200 T	3,200 mm	500 mm	350 mm
WC67Y-200x4000	200 T	4,000 mm	500 mm	350 mm
WC67Y-250x3200	250 T	3,200 mm	545 mm	400 mm
WC67Y-250x4000	250 T	4,000 mm	545 mm	400 mm
WC67Y-250x5000	250 T	5,000 mm	545 mm	400 mm
WC67Y-300x3200	300 T	3,200 mm	560 mm	400 mm
WC67Y-300x4000	300 T	4,000 mm	560 mm	400 mm
WC67Y-400x4000	400 T	4,000 mm	640 mm	400 mm

Compare	Model	Pressing force	Bending length	Open height	Throat depth
	WM5012	50 T	1,200 mm	370 mm	400 mm
	WM1030	100 T	3,000 mm	370 mm	400 mm
