Learn more about TRUMPF press brakes

About TRUMPF

TRUMPF is an internationally active family company whose history goes back to 1923, when Christian Trumpf and two partners acquired a mechanical workshop in Stuttgart. More than 70 subsidiaries represent the group in nearly every European country, in North and South America and in Asia.

Its manual bending machines come in the TruBend Series 1000, 3000, 5000, 7000 and 8000: from easy entry-level bending and daily mixed-part production to high-mix job shop work, small electric machines for small parts and heavy-duty machines for large, thick workpieces.

1923Roots in a Stuttgart workshop
€4.34 bnSales, fiscal year 2025/26
17,583Employees, 30 June 2026
70+Subsidiaries

The TRUMPF Press Brake Range

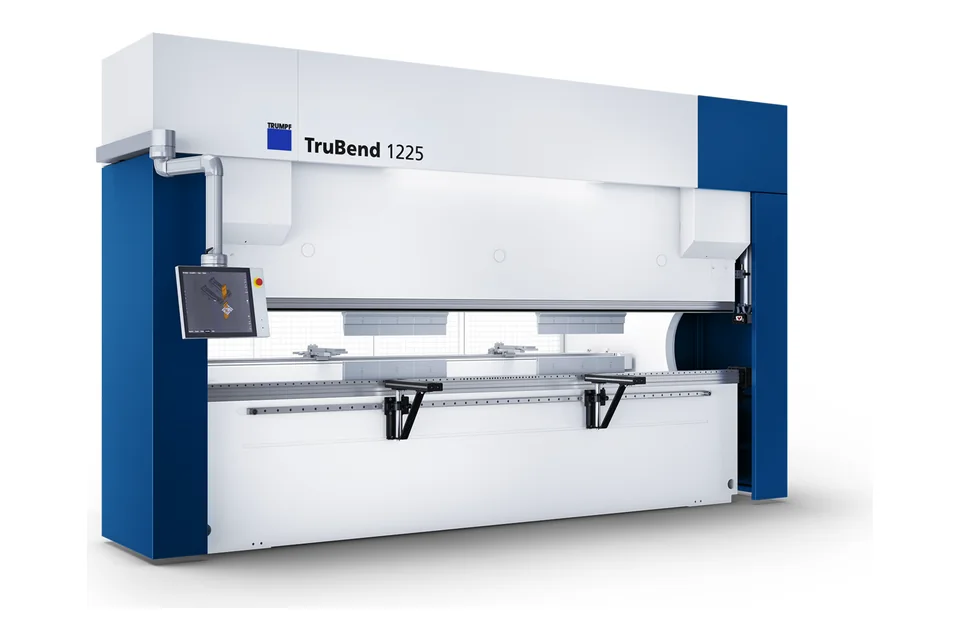

TruBend Series 1000

Entry-level bending in Classic and Comfort models.
8 models · 60–320 T · 2,050–4,100 mm

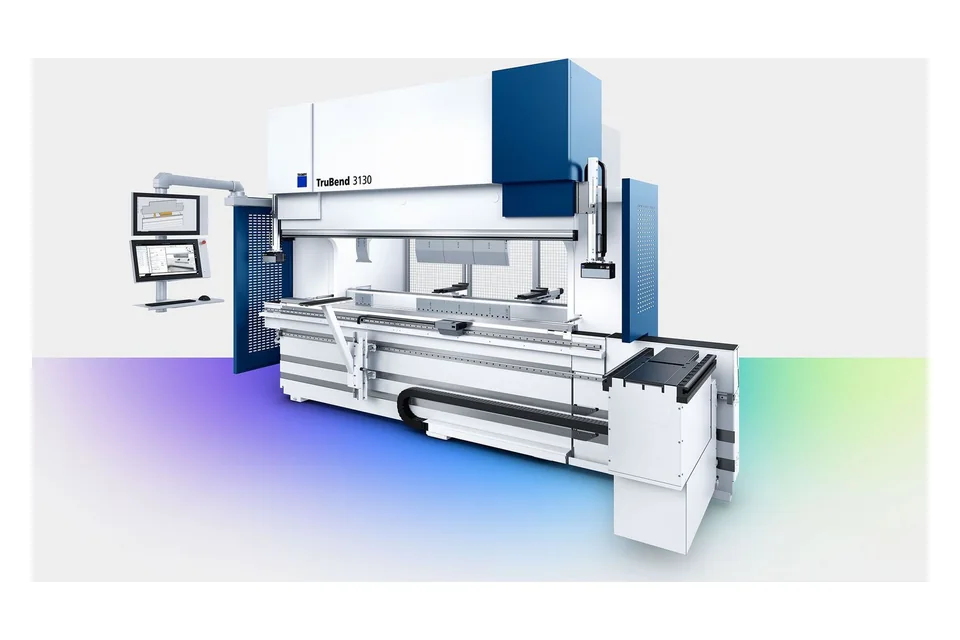

TruBend Series 3000

All-purpose machine for daily mixed-part production.
5 models · 100–230 T · 3,230–4,250 mm

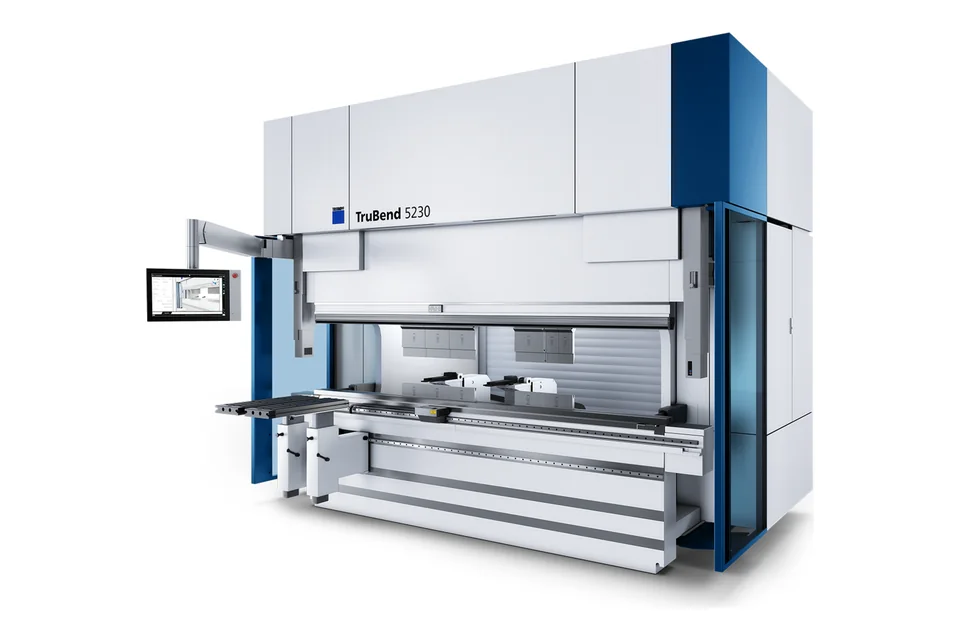

TruBend Series 5000

High-mix machine for constantly changing, complex parts.
8 models · 85–320 T · 2,210–4,420 mm

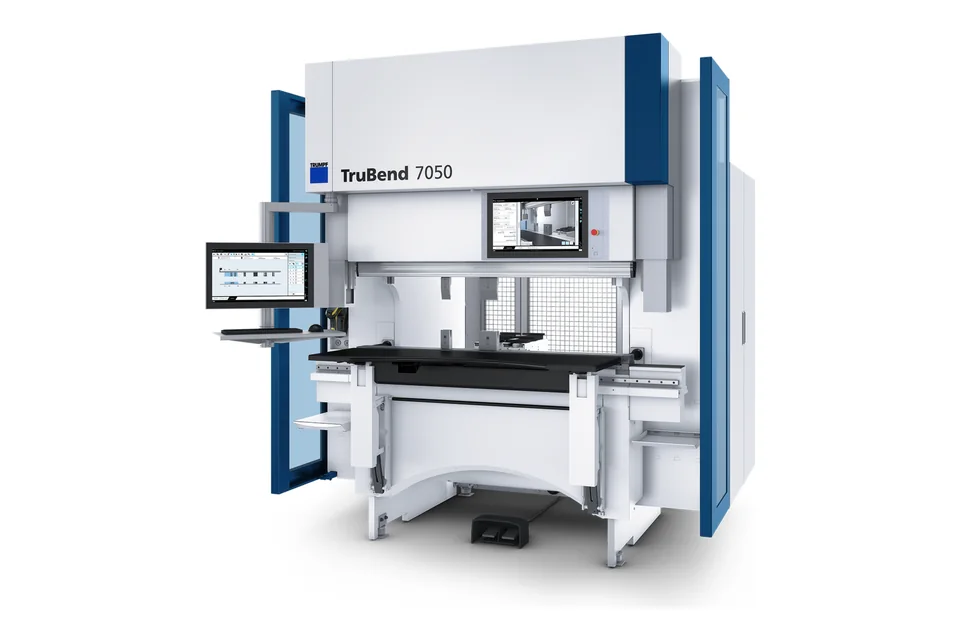

TruBend Series 7000

Small-part specialist with an electric drive.
2 models · 36–50 T · 1,020–1,530 mm

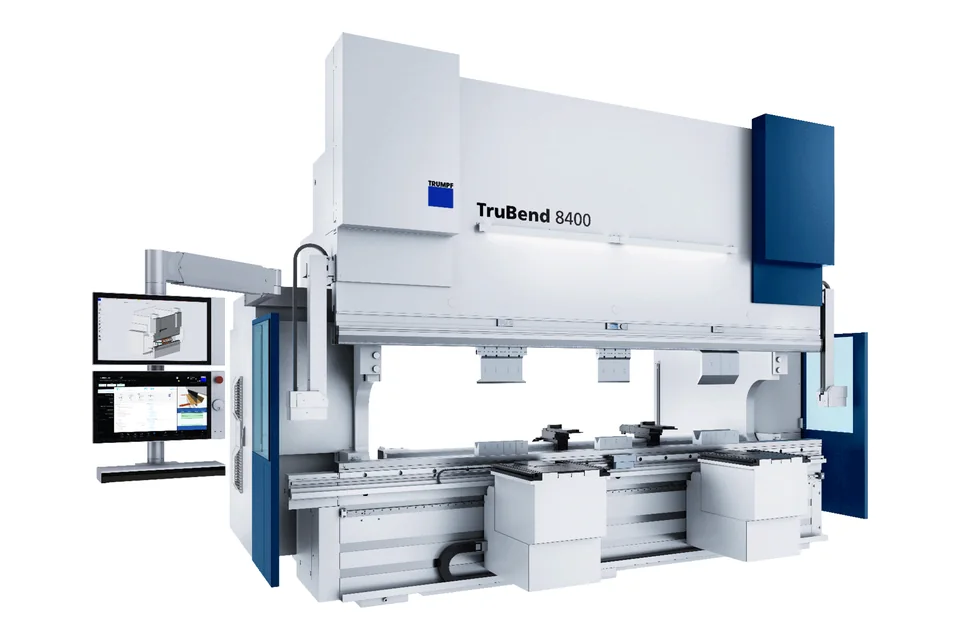

TruBend Series 8000

Heavy-duty machine for large, heavy and tall parts.
14 models · 230–1,250 T · 3,230–8,050 mm

Company information, specifications and images from TRUMPF manual bending machines, Company profile, History 1923–1933, TruBend Series 1000 press brakes, TruBend Series 3000 press brakes, TruBend Series 5000 press brakes, TruBend Series 7000 press brakes, TruBend Series 8000 press brakes, retrieved 28 October 2026. TRUMPF states that its more than 70 subsidiaries represent the group in nearly every European country, in North and South America and in Asia; it names no market where it does not sell, so it is listed in every catalog region.

Model	Pressing force	Bending length	Open height	Throat depth
TruBend 1060 Comfort	60 T	2,050 mm	400 mm	350 mm
TruBend 1100 Classic	100 T	3,100 mm	380 mm	410 mm
TruBend 1100 Comfort	100 T	3,100 mm	400 mm	410 mm
TruBend 1150 Classic	150 T	3,100 mm	380 mm	410 mm
TruBend 1150 Comfort	150 T	3,100 mm	400 mm	410 mm
TruBend 1225 Classic	225 T	4,100 mm	380 mm	410 mm
TruBend 1225 Comfort	225 T	4,100 mm	400 mm	410 mm
TruBend 1320 Comfort	320 T	4,100 mm	505 mm	410 mm

Model	Pressing force	Bending length	Open height	Throat depth
TruBend 3100	100 T	3,230 mm	385 mm	Not provided
TruBend 3130	130 T	3,230 mm	615 mm	Not provided
TruBend 3170 (3.2)	170 T	3,230 mm	615 mm	Not provided
TruBend 3170 (4.3)	170 T	4,250 mm	615 mm	Not provided
TruBend 3230 (3.2)	230 T	3,230 mm	615 mm	Not provided

Model	Pressing force	Bending length	Open height	Throat depth
TruBend 5085	85 T	2,210 mm	385 mm	420 mm
TruBend 5085 (S)	85 T	2,720 mm	615 mm	420 mm
TruBend 5130	130 T	3,230 mm	385 mm	420 mm
TruBend 5170	170 T	3,230 mm	615 mm	420 mm
TruBend 5170 (S)	170 T	4,250 mm	615 mm	420 mm
TruBend 5230	230 T	3,230 mm	615 mm	420 mm
TruBend 5230 (S)	230 T	4,250 mm	615 mm	420 mm
TruBend 5320	320 T	4,420 mm	615 mm	420 mm

Compare	Model	Pressing force	Bending length	Open height	Throat depth
	TruBend 7036	36 T	1,020 mm	295 mm	150 mm
	TruBend 7050	50 T	1,530 mm	385 mm	250 mm

Model	Pressing force	Bending length	Open height	Throat depth
TruBend 8230 (bending length 4420 mm)	230 T	4,420 mm	880 mm	620 mm
TruBend 8320 (bending length 3230 mm)	320 T	3,230 mm	880 mm	620 mm
TruBend 8320 (bending length 6120 mm)	320 T	6,120 mm	880 mm	620 mm
TruBend 8400 (bending length 4420 mm)	400 T	4,420 mm	880 mm	620 mm
TruBend 8400 (bending length 6120 mm)	400 T	6,120 mm	880 mm	620 mm
TruBend 8600 (bending length 4420 mm)	600 T	4,420 mm	880 mm	620 mm
TruBend 8600 (bending length 6120 mm)	600 T	6,120 mm	880 mm	620 mm
TruBend 8800 (bending length 6120 mm)	800 T	6,120 mm	675 mm	420 mm
TruBend 8800 (bending length 7050 mm)	800 T	7,050 mm	675 mm	420 mm
TruBend 8800 (bending length 8050 mm)	800 T	8,050 mm	675 mm	420 mm
TruBend 81000 (bending length 7050 mm)	1,000 T	7,050 mm	675 mm	420 mm
TruBend 81000 (bending length 8050 mm)	1,000 T	8,050 mm	675 mm	420 mm
TruBend 81250 (bending length 6120 mm)	1,250 T	6,120 mm	875 mm	620 mm
TruBend 81250 (bending length 7050 mm)	1,250 T	7,050 mm	875 mm	620 mm
