Learn more about Bystronic press brakes

About Bystronic

Bystronic (SIX: BYS) provides sheet metal and material processing solutions that combine laser cutting, press brakes, automation and software. Its headquarters are in Switzerland, with development and production in Germany, Spain, Italy, China and the USA.

It serves customers in more than 30 countries through its own subsidiaries and a network of dealers and agents, and notes that not every product is available in every country. Its press brakes run on Bystronic's own BySoft Cell Control Bend software.

3,300+Employees
40+Locations
CHF 613.2 mNet revenue 2025
30+Countries served

The Bystronic Press Brake Range

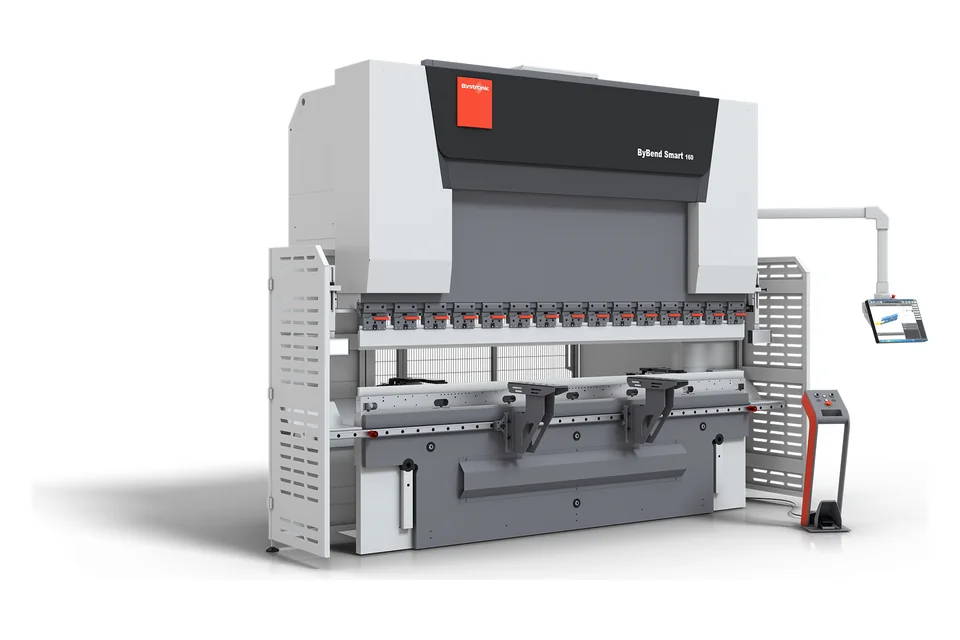

ByBend Smart

Fast entry-level press brake, 100 to 300 t.
Ranges only: Bystronic publishes no per-model data.

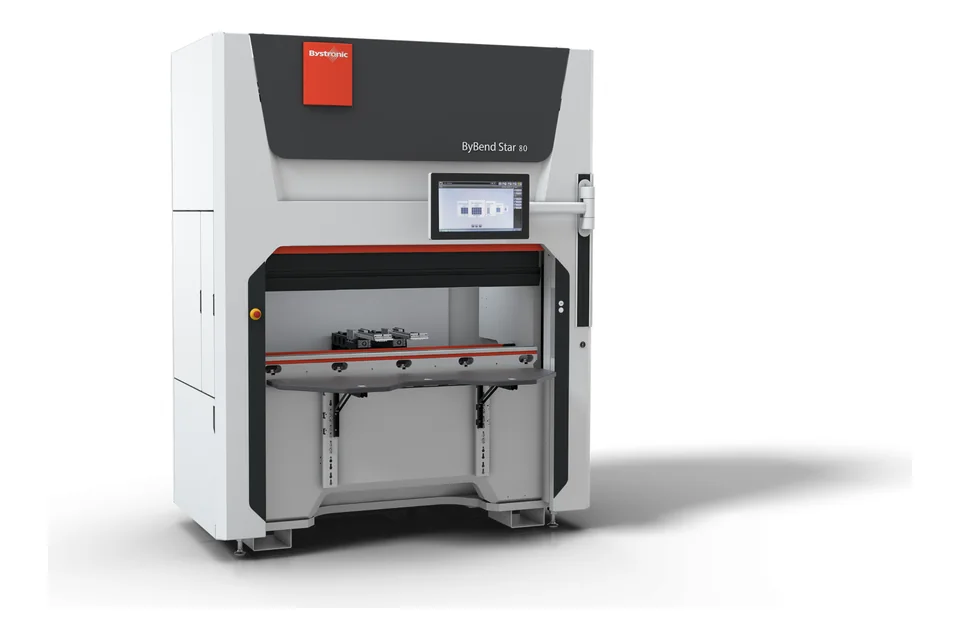

ByBend Star 80

Mobile 80 t press brake, ready to bend in under five minutes.
1 model · 80–80 T · 1,530–1,530 mm

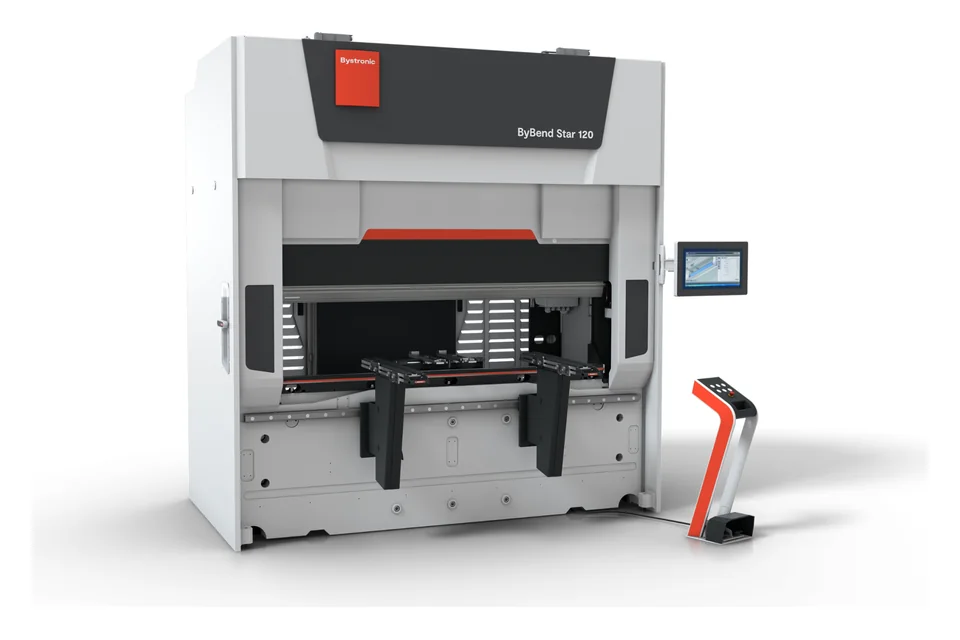

ByBend Star 120

Compact 120 t press brake for small and medium parts.
1 model · 120–120 T · 2,050–2,050 mm

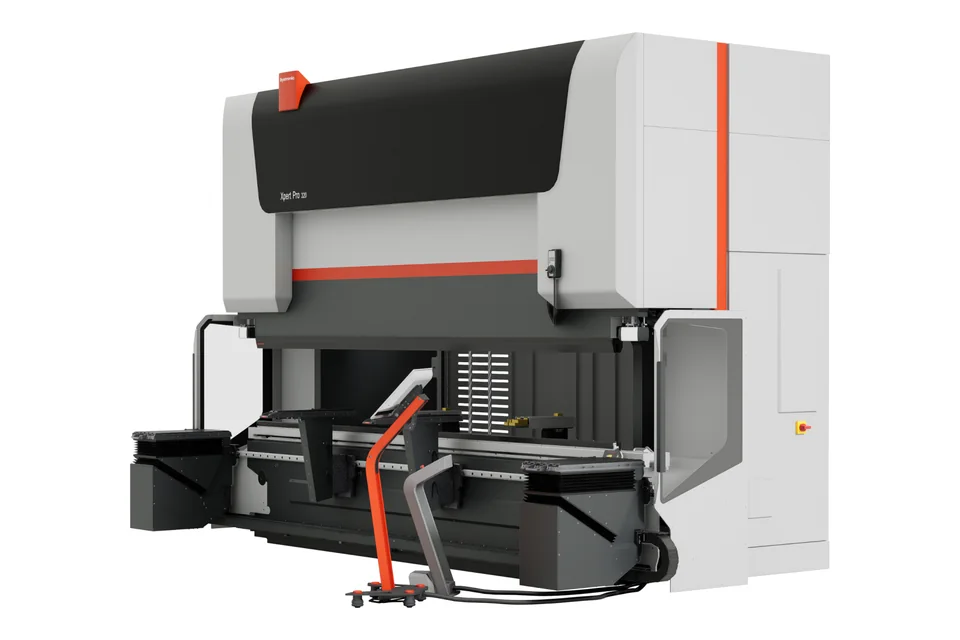

Xpert Pro

C-frame precision press brake, 100 to 320 t, standard or Extended.
16 models · 100–320 T · 3,100–4,300 mm

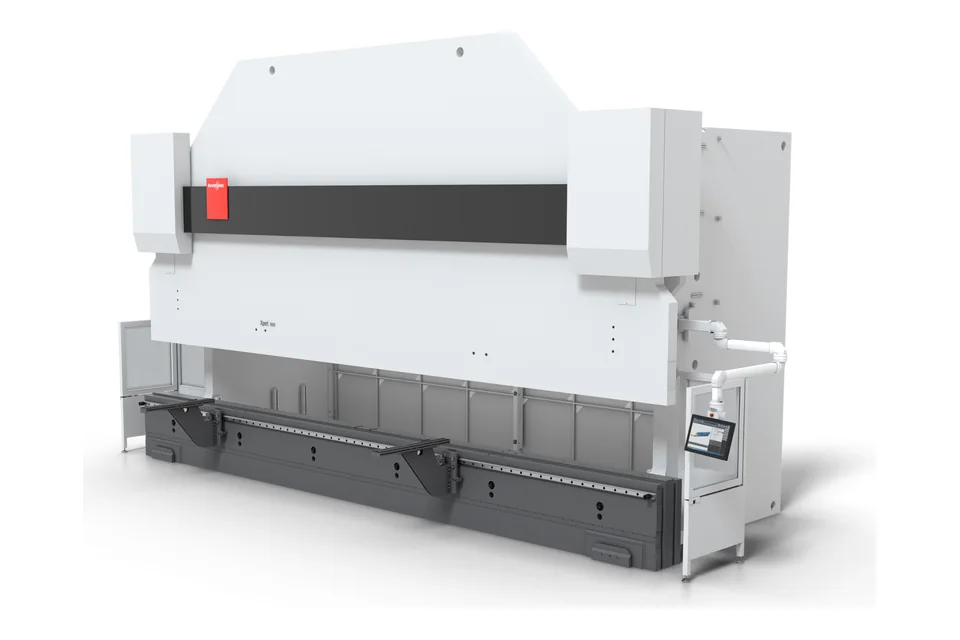

Xpert 250-1000

Heavy-duty press brake, 250 to 1,000 t and up to 10.2 m.
21 models · 250–1,000 T · 3,100–10,200 mm

Company information, specifications and images from Bystronic press brakes, Bystronic company profile, Bystronic imprint, ByBend Star 80 mobile press brake, ByBend Star 120 compact press brake, Xpert Pro press brake, Xpert 250-1000 heavy-duty press brake, retrieved 28 October 2026. Bystronic serves customers in more than 30 countries through its own subsidiaries, dealers and agents, so its lasers are listed in the same catalog regions as its press brakes.

Model	Pressing force	Bending length	Open height	Throat depth
Xpert Pro Extended 100/3100	100 T	3,100 mm	840 mm	400 mm
Xpert Pro 100/3100	100 T	3,100 mm	640 mm	400 mm
Xpert Pro Extended 150/3100	150 T	3,100 mm	840 mm	400 mm
Xpert Pro 150/3100	150 T	3,100 mm	640 mm	400 mm
Xpert Pro Extended 200/3100	200 T	3,100 mm	840 mm	400 mm
Xpert Pro 200/3100	200 T	3,100 mm	640 mm	400 mm
Xpert Pro Extended 200/4300	200 T	4,300 mm	840 mm	400 mm
Xpert Pro 200/4300	200 T	4,300 mm	640 mm	400 mm
Xpert Pro Extended 250/3100	250 T	3,100 mm	840 mm	400 mm
Xpert Pro 250/3100	250 T	3,100 mm	640 mm	400 mm
Xpert Pro Extended 250/4300	250 T	4,300 mm	840 mm	400 mm
Xpert Pro 250/4300	250 T	4,300 mm	640 mm	400 mm
Xpert Pro Extended 320/3100	320 T	3,100 mm	840 mm	400 mm
Xpert Pro 320/3100	320 T	3,100 mm	640 mm	400 mm
Xpert Pro Extended 320/4300	320 T	4,300 mm	840 mm	400 mm
Xpert Pro 320/4300	320 T	4,300 mm	640 mm	400 mm

Model	Pressing force	Bending length	Open height	Throat depth
Xpert 250/5100	250 T	5,100 mm	550 mm	400 mm
Xpert 250/6200	250 T	6,200 mm	550 mm	400 mm
Xpert 320/5100	320 T	5,100 mm	550 mm	400 mm
Xpert 320/6200	320 T	6,200 mm	550 mm	400 mm
Xpert 320/7200	320 T	7,200 mm	550 mm	400 mm
Xpert 400/3100	400 T	3,100 mm	550 mm	400 mm
Xpert 400/4100	400 T	4,100 mm	550 mm	400 mm
Xpert 400/5100	400 T	5,100 mm	550 mm	400 mm
Xpert 400/6200	400 T	6,200 mm	550 mm	400 mm
Xpert 400/7200	400 T	7,200 mm	550 mm	400 mm
Xpert 400/8200	400 T	8,200 mm	550 mm	400 mm
Xpert 800/5100	800 T	5,100 mm	650 mm	500 mm
Xpert 800/6200	800 T	6,200 mm	650 mm	500 mm
Xpert 800/7200	800 T	7,200 mm	650 mm	500 mm
Xpert 800/8200	800 T	8,200 mm	650 mm	500 mm
Xpert 1000/5100	1,000 T	5,100 mm	650 mm	500 mm
Xpert 1000/6200	1,000 T	6,200 mm	650 mm	500 mm
Xpert 1000/7200	1,000 T	7,200 mm	650 mm	500 mm
Xpert 1000/8200	1,000 T	8,200 mm	650 mm	500 mm
Xpert 1000/9200	1,000 T	9,200 mm	650 mm	500 mm
Xpert 1000/10200	1,000 T	10,200 mm	650 mm	500 mm
