About Vimercati

Vimercati was founded in 1973 and makes press brakes, guillotine shears and systems for sheet metal work. It keeps production in its own plant in Sovico – from raw material through fabrication, machining, painting and wiring – and has an in-house technical office for custom designs and feasibility studies.

Its hydraulic press brakes run from 30 t × 1,250 mm to 600 t × 6,260 mm in the catalogue tables, and stroke, opening, throat and tool-adapter height can be made to order; tandem setups reach 16 m.

1973Founded
33Countries
30–600 tHydraulic range

The Vimercati Press Brake Range

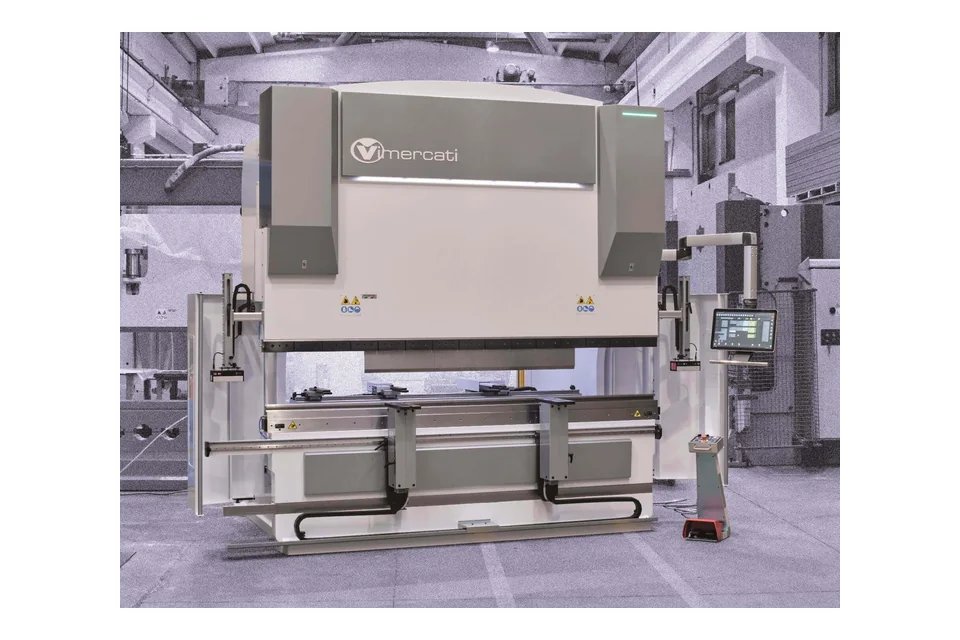

PHSY

Synchronised hydraulic press brakes, 50 to 600 t up to 6,260 mm.
46 models · 50–600 T · 2,085–6,260 mm

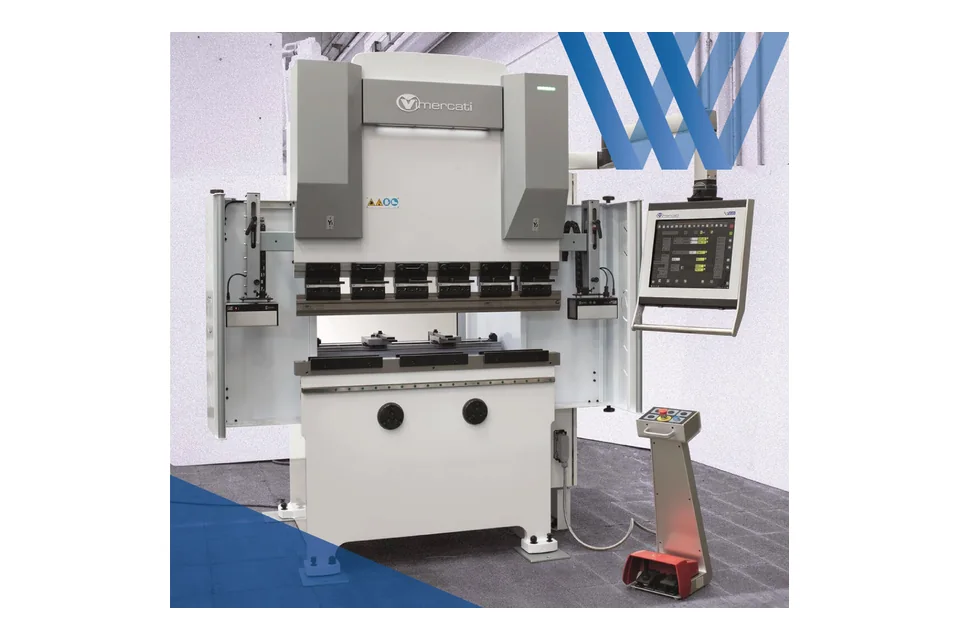

30 t × 1,250 mm

The smallest Vimercati, for fast work on small parts.
1 model · 30–30 T · 1,250–1,250 mm

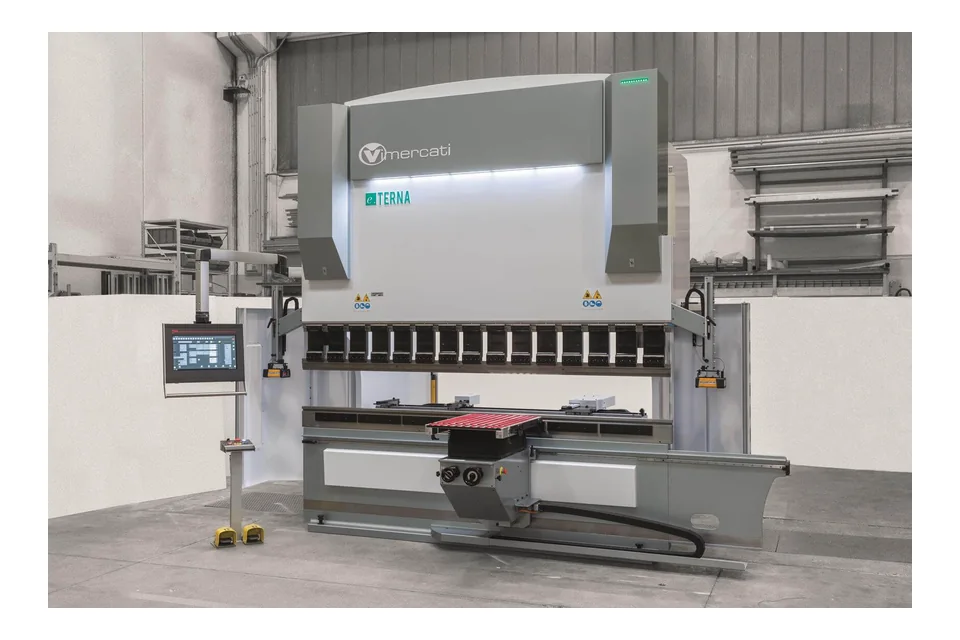

e.TERNA

Hybrid version of the PHSY sizes with an on-demand main motor.
46 models · 50–600 T · 2,085–6,260 mm

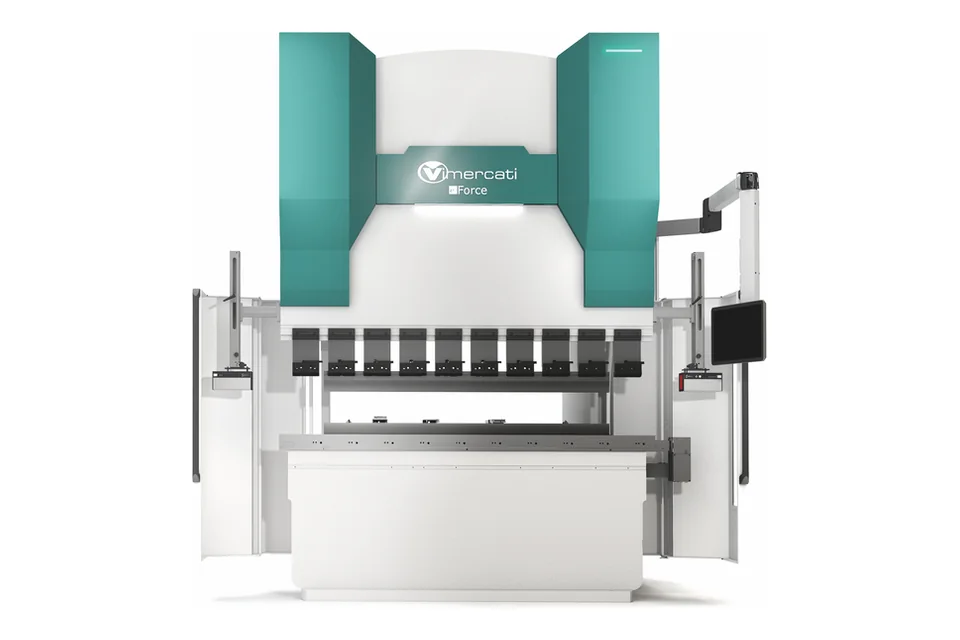

e.Force

Ball screws driven directly by torque motors, 60 to 150 t.
Six sizes listed (60–150 t, 2,085–4,175 mm) without a data table.

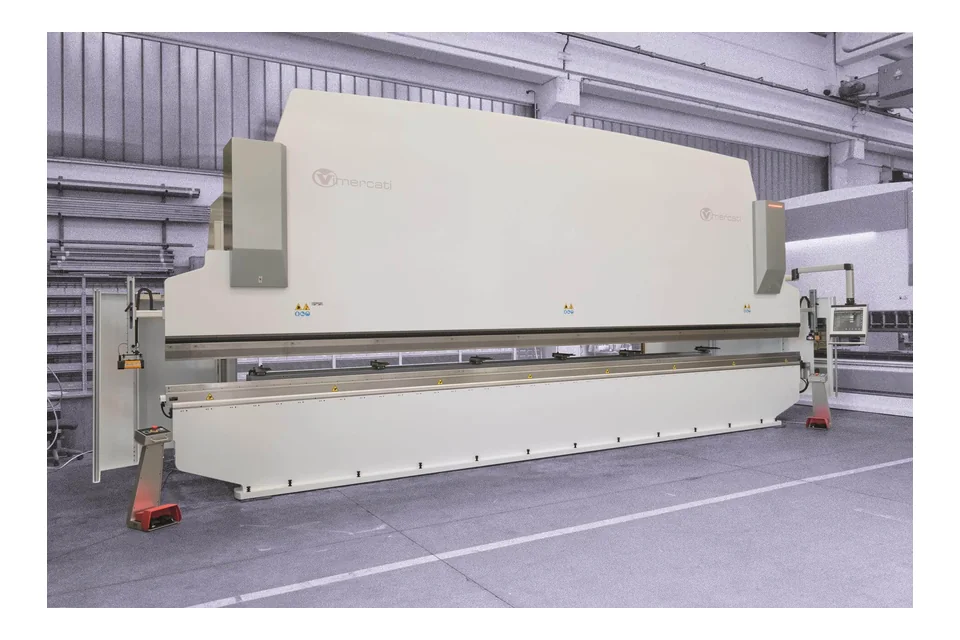

PHSL roofing

Long press brakes for roofing sheet, 100 to 200 t up to 10,050 mm.
10 models · 100–200 T · 6,550–10,050 mm

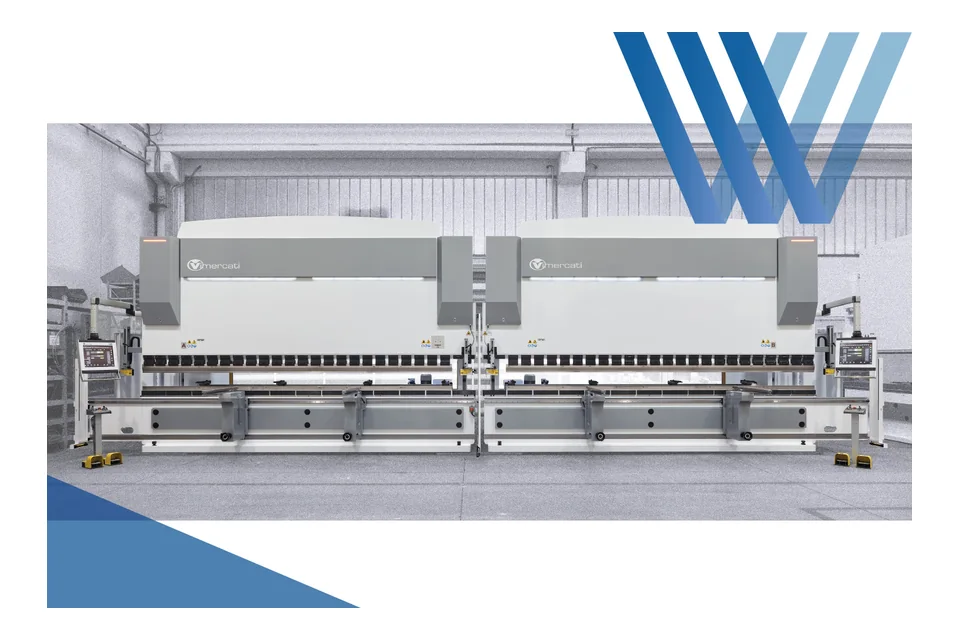

Tandem

Two or more press brakes working together or apart, up to 16 m.
Configured per project; no standard models.

Company information, specifications and images from Vimercati press brakes, Hydraulic presses, 30-tonne presses, e.TERNA hybrid, e.Force electric, Roofing press brakes, Tandem, Press brake catalogue (PDF), Roofing machine catalogue (PDF), About Vimercati, PHSY hydraulic press brakes, PHSY 30 t × 1,250 mm press brake, e.TERNA hybrid press brakes, PHSL roofing press brakes, retrieved 28 October 2026. Vimercati's catalogues say its machines are sold worldwide and its company page reports a presence in 33 countries; it names no market where it does not sell.

Model	Pressing force	Bending length	Open height	Throat depth
PHSY 5020	50 T	2,085 mm	410 mm	300 mm
PHSY 5025	50 T	2,505 mm	410 mm	300 mm
PHSY 5030	50 T	3,050 mm	410 mm	300 mm
PHSY 5040	50 T	4,175 mm	410 mm	300 mm
PHSY 7520	75 T	2,085 mm	410 mm	300 mm
PHSY 7525	75 T	2,505 mm	410 mm	300 mm
PHSY 7530	75 T	3,050 mm	410 mm	300 mm
PHSY 7540	75 T	4,175 mm	410 mm	300 mm
PHSY 10020	100 T	2,085 mm	460 mm	500 mm
PHSY 10025	100 T	2,505 mm	460 mm	500 mm
PHSY 10030	100 T	3,050 mm	460 mm	500 mm
PHSY 10040	100 T	4,175 mm	460 mm	500 mm
PHSY 10050	100 T	5,050 mm	460 mm	500 mm
PHSY 10060	100 T	6,260 mm	460 mm	500 mm
PHSY 12520	125 T	2,085 mm	460 mm	500 mm
PHSY 12525	125 T	2,505 mm	460 mm	500 mm
PHSY 12530	125 T	3,050 mm	460 mm	500 mm
PHSY 12540	125 T	4,175 mm	460 mm	500 mm
PHSY 12550	125 T	5,050 mm	460 mm	500 mm
PHSY 12560	125 T	6,260 mm	460 mm	500 mm
PHSY 15030	150 T	3,050 mm	460 mm	500 mm
PHSY 15040	150 T	4,175 mm	460 mm	500 mm
PHSY 15050	150 T	5,050 mm	460 mm	500 mm
PHSY 15060	150 T	6,260 mm	460 mm	500 mm
PHSY 20030	200 T	3,050 mm	460 mm	500 mm
PHSY 20040	200 T	4,175 mm	460 mm	500 mm
PHSY 20050	200 T	5,050 mm	460 mm	500 mm
PHSY 20060	200 T	6,260 mm	460 mm	500 mm
PHSY 25030	250 T	3,050 mm	460 mm	500 mm
PHSY 25040	250 T	4,175 mm	460 mm	500 mm
PHSY 25050	250 T	5,050 mm	460 mm	500 mm
PHSY 25060	250 T	6,260 mm	460 mm	500 mm
PHSY 30030	300 T	3,050 mm	560 mm	500 mm
PHSY 30040	300 T	4,175 mm	560 mm	500 mm
PHSY 30050	300 T	5,050 mm	560 mm	500 mm
PHSY 30060	300 T	6,260 mm	560 mm	500 mm
PHSY 40030	400 T	3,050 mm	600 mm	500 mm
PHSY 40040	400 T	4,175 mm	600 mm	500 mm
PHSY 40050	400 T	5,050 mm	600 mm	500 mm
PHSY 40060	400 T	6,260 mm	600 mm	500 mm
PHSY 50040	500 T	4,175 mm	650 mm	500 mm
PHSY 50050	500 T	5,050 mm	650 mm	500 mm
PHSY 50060	500 T	6,260 mm	650 mm	500 mm
PHSY 60040	600 T	4,175 mm	750 mm	500 mm
PHSY 60050	600 T	5,050 mm	750 mm	500 mm
PHSY 60060	600 T	6,260 mm	750 mm	500 mm

Model	Pressing force	Bending length	Open height	Throat depth
e.TERNA PHSY 5020	50 T	2,085 mm	410 mm	300 mm
e.TERNA PHSY 5025	50 T	2,505 mm	410 mm	300 mm
e.TERNA PHSY 5030	50 T	3,050 mm	410 mm	300 mm
e.TERNA PHSY 5040	50 T	4,175 mm	410 mm	300 mm
e.TERNA PHSY 7520	75 T	2,085 mm	410 mm	300 mm
e.TERNA PHSY 7525	75 T	2,505 mm	410 mm	300 mm
e.TERNA PHSY 7530	75 T	3,050 mm	410 mm	300 mm
e.TERNA PHSY 7540	75 T	4,175 mm	410 mm	300 mm
e.TERNA PHSY 10020	100 T	2,085 mm	460 mm	500 mm
e.TERNA PHSY 10025	100 T	2,505 mm	460 mm	500 mm
e.TERNA PHSY 10030	100 T	3,050 mm	460 mm	500 mm
e.TERNA PHSY 10040	100 T	4,175 mm	460 mm	500 mm
e.TERNA PHSY 10050	100 T	5,050 mm	460 mm	500 mm
e.TERNA PHSY 10060	100 T	6,260 mm	460 mm	500 mm
e.TERNA PHSY 12520	125 T	2,085 mm	460 mm	500 mm
e.TERNA PHSY 12525	125 T	2,505 mm	460 mm	500 mm
e.TERNA PHSY 12530	125 T	3,050 mm	460 mm	500 mm
e.TERNA PHSY 12540	125 T	4,175 mm	460 mm	500 mm
e.TERNA PHSY 12550	125 T	5,050 mm	460 mm	500 mm
e.TERNA PHSY 12560	125 T	6,260 mm	460 mm	500 mm
e.TERNA PHSY 15030	150 T	3,050 mm	460 mm	500 mm
e.TERNA PHSY 15040	150 T	4,175 mm	460 mm	500 mm
e.TERNA PHSY 15050	150 T	5,050 mm	460 mm	500 mm
e.TERNA PHSY 15060	150 T	6,260 mm	460 mm	500 mm
e.TERNA PHSY 20030	200 T	3,050 mm	460 mm	500 mm
e.TERNA PHSY 20040	200 T	4,175 mm	460 mm	500 mm
e.TERNA PHSY 20050	200 T	5,050 mm	460 mm	500 mm
e.TERNA PHSY 20060	200 T	6,260 mm	460 mm	500 mm
e.TERNA PHSY 25030	250 T	3,050 mm	460 mm	500 mm
e.TERNA PHSY 25040	250 T	4,175 mm	460 mm	500 mm
e.TERNA PHSY 25050	250 T	5,050 mm	460 mm	500 mm
e.TERNA PHSY 25060	250 T	6,260 mm	460 mm	500 mm
e.TERNA PHSY 30030	300 T	3,050 mm	560 mm	500 mm
e.TERNA PHSY 30040	300 T	4,175 mm	560 mm	500 mm
e.TERNA PHSY 30050	300 T	5,050 mm	560 mm	500 mm
e.TERNA PHSY 30060	300 T	6,260 mm	560 mm	500 mm
e.TERNA PHSY 40030	400 T	3,050 mm	600 mm	500 mm
e.TERNA PHSY 40040	400 T	4,175 mm	600 mm	500 mm
e.TERNA PHSY 40050	400 T	5,050 mm	600 mm	500 mm
e.TERNA PHSY 40060	400 T	6,260 mm	600 mm	500 mm
e.TERNA PHSY 50040	500 T	4,175 mm	650 mm	500 mm
e.TERNA PHSY 50050	500 T	5,050 mm	650 mm	500 mm
e.TERNA PHSY 50060	500 T	6,260 mm	650 mm	500 mm
e.TERNA PHSY 60040	600 T	4,175 mm	750 mm	500 mm
e.TERNA PHSY 60050	600 T	5,050 mm	750 mm	500 mm
e.TERNA PHSY 60060	600 T	6,260 mm	750 mm	500 mm

Model	Pressing force	Bending length	Open height	Throat depth
PHSL 100/65	100 T	6,550 mm	Not provided	750 mm
PHSL 100/85	100 T	8,550 mm	Not provided	750 mm
PHSL 125/65	125 T	6,550 mm	Not provided	750 mm
PHSL 125/85	125 T	8,550 mm	Not provided	750 mm
PHSL 125/100	125 T	10,050 mm	Not provided	750 mm
PHSL 150/65	150 T	6,550 mm	Not provided	750 mm
PHSL 150/85	150 T	8,550 mm	Not provided	750 mm
PHSL 150/100	150 T	10,050 mm	Not provided	750 mm
PHSL 200/85	200 T	8,550 mm	Not provided	750 mm
PHSL 200/100	200 T	10,050 mm	Not provided	750 mm
