Learn more about Toong-Woei press brakes

About Toong-Woei

Toong-woei has made metal-working machines since 1982. In 1990 it worked with Taiwan's Industrial Technology Research Institute and European engineers to develop its CNC hydraulic press brakes; it reports several patents and ISO 9001 and CE certification.

Besides hydraulic and servo-electric press brakes it builds NC swing-beam hydraulic shears, hydraulic notching machines, punches and dies.

1982Founded

The Toong-Woei Press Brake Range

CNC Hydraulic

CNC hydraulic press brakes, 50 to 2,000 t on 2 to 10 m tables.
26 models · 50–2,000 T · 2,000–10,000 mm

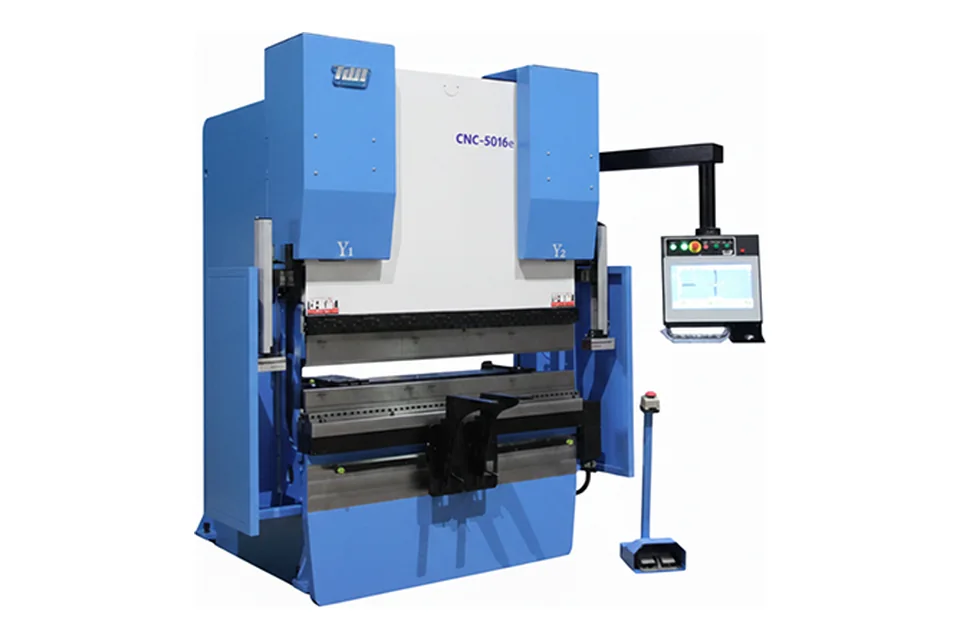

Servo-Electric

Ball-screw servo-electric press brakes without hydraulic oil.
Models CNC-3212-e and CNC-5016-e are published without a unit for the working pressure, so none is listed.

Company information, specifications and images from Toong-woei hydraulic press brakes, Toong-woei electric press brakes, Toong-woei 2023 catalogue (PDF), About Toong-woei, Toong-woei CNC hydraulic press brake, retrieved 28 October 2026. Toong-woei says that besides the Taiwan market it is actively developing overseas markets (“除了耕耘台灣市場外，也積極開拓海外市場”) and cites CE certification; it names no limit on where it sells, so it is listed in every catalog region.

Model	Pressing force	Bending length	Open height	Throat depth
CNC-5020	50 T	2,000 mm	420 mm	400 mm
CNC-10026	100 T	2,600 mm	550 mm	400 mm
CNC-10032	100 T	3,200 mm	550 mm	400 mm
CNC-15032	150 T	3,200 mm	550 mm	400 mm
CNC-20032	200 T	3,200 mm	550 mm	400 mm
CNC-20042	200 T	4,200 mm	550 mm	400 mm
CNC-30042	300 T	4,200 mm	550 mm	400 mm
CNC-40042	400 T	4,200 mm	550 mm	400 mm
CNC-50042	500 T	4,200 mm	550 mm	400 mm
CNC-30062	300 T	6,200 mm	550 mm	400 mm
CNC-40062	400 T	6,200 mm	550 mm	400 mm
CNC-60062	600 T	6,200 mm	550 mm	400 mm
CNC-80062	800 T	6,200 mm	550 mm	400 mm
CNC-100062	1,000 T	6,200 mm	550 mm	400 mm
CNC-120062	1,200 T	6,200 mm	550 mm	400 mm
CNC-30072	300 T	7,200 mm	550 mm	400 mm
CNC-40072	400 T	7,200 mm	550 mm	400 mm
CNC-50072	500 T	7,200 mm	550 mm	400 mm
CNC-60072	600 T	7,200 mm	550 mm	400 mm
CNC-80072	800 T	7,200 mm	550 mm	400 mm
CNC-100072	1,000 T	7,200 mm	550 mm	400 mm
CNC-120072	1,200 T	7,200 mm	550 mm	400 mm
CNC-150072	1,500 T	7,200 mm	550 mm	400 mm
CNC-200072	2,000 T	7,200 mm	550 mm	400 mm
CNC-1200100	1,200 T	10,000 mm	700 mm	450 mm
CNC-1500100	1,500 T	10,000 mm	700 mm	450 mm
