Learn more about Salvagnini press brakes

About Salvagnini

Salvagnini was founded in 1963 and has had its headquarters in Sarego, Italy, since 1974; in 1977 it designed the first panel bender, the P4. Today it has 2,108 people, 25 branches and five plants: four in Italy and, in Austria, Europe’s largest plant dedicated to panel benders.

Its press brake line is the B3, offered from stand-alone machines with automatic tool adjustment (ATA, MVM) or the AU-TO tool changer up to robotized bending cells, and linked to Salvagnini’s OPS production software and LINKS IoT platform.

1963Working sheet metal since
2,108People
25Branches
5Production plants

The Salvagnini Press Brake Range

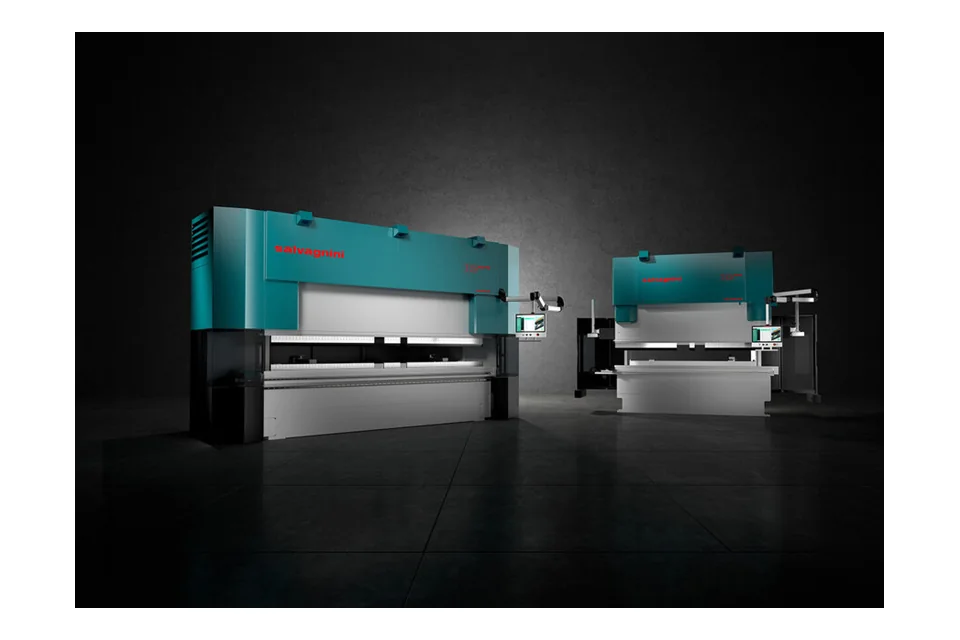

B3

Hybrid press brake with direct-drive brushless motors and scalable tool automation, 80 to 400 t.
22 models · 80–400 T · 2,040–6,100 mm

Company information, specifications and images from Salvagnini press brakes, Salvagnini company profile, Salvagnini history, B3 hybrid press brake, retrieved 28 October 2026. Salvagnini has 25 branches with service centers in the Americas, Europe and Asia, so its lasers are listed in the same catalog regions as its press brakes.

Model	Pressing force	Bending length	Open height	Throat depth
B3 80/2000	80 T	2,040 mm	550 mm	350 mm
B3 100/2000	100 T	2,040 mm	550 mm	350 mm
B3 100/3000	100 T	3,060 mm	550 mm	435 mm
B3 135/3000	135 T	3,060 mm	600 mm	435 mm
B3 135/4250	135 T	4,250 mm	600 mm	435 mm
B3 170/3000	170 T	3,060 mm	600 mm	435 mm
B3 170/3000XL	170 T	3,060 mm	700 mm	520 mm
B3 170/4250	170 T	4,250 mm	600 mm	435 mm
B3 170/4250XL	170 T	4,250 mm	700 mm	520 mm
B3 170/5100XL	170 T	5,100 mm	700 mm	520 mm
B3 240/3000	240 T	3,060 mm	700 mm	520 mm
B3 240/4250	240 T	4,250 mm	700 mm	520 mm
B3 240/5100	240 T	5,100 mm	700 mm	520 mm
B3 240/6100	240 T	6,100 mm	700 mm	520 mm
B3 320/3000	320 T	3,060 mm	700 mm	520 mm
B3 320/4250	320 T	4,250 mm	700 mm	520 mm
B3 320/5100	320 T	5,100 mm	700 mm	520 mm
B3 320/6100	320 T	6,100 mm	700 mm	520 mm
B3 400/4250	400 T	4,250 mm	700 mm	520 mm
B3 AU-TO 170/4250	170 T	Not provided	600 mm	435 mm
B3 AU-TO 240/4250	240 T	4,250 mm	700 mm	520 mm
B3 AU-TO 320/4250	320 T	Not provided	700 mm	520 mm
