About JFY

JFY describes itself as a wholly owned subsidiary of TRUMPF with more than 30 years of sheet metal experience; its bending, laser cutting, punching and automated lines are used in China and abroad.

JFY reports more than 30,000 machines installed worldwide and about 2,500 machines sold each year.

30,000+Machines installed
2,500+Machines sold a year
650+Employees
50+Countries covered

The JFY Press Brake Range

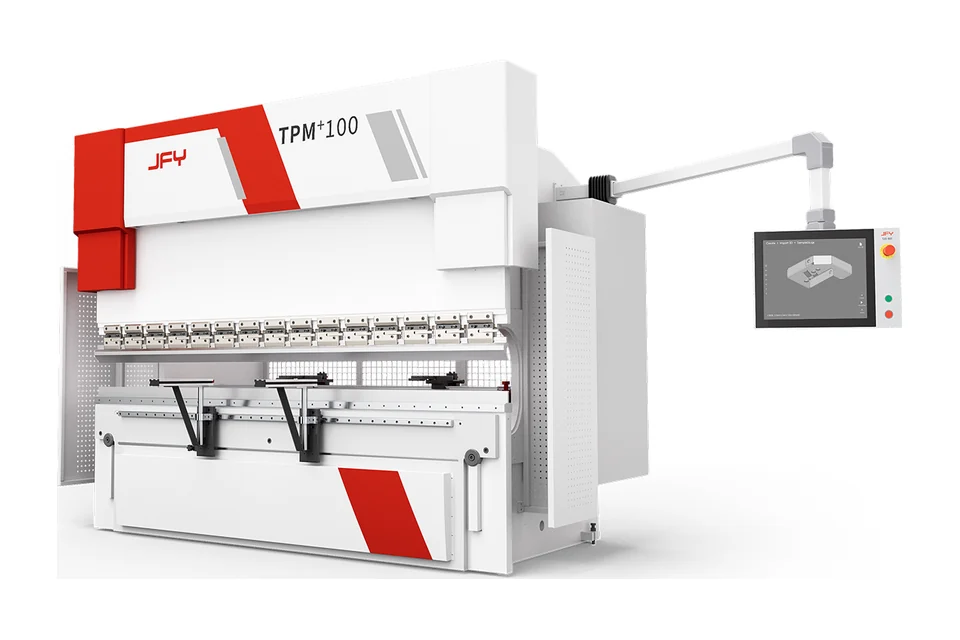

TPM+

Servo-motor hydraulics and the TJS-90T control, 100 to 320 t.
8 models · 100–320 T · 3,100–4,100 mm

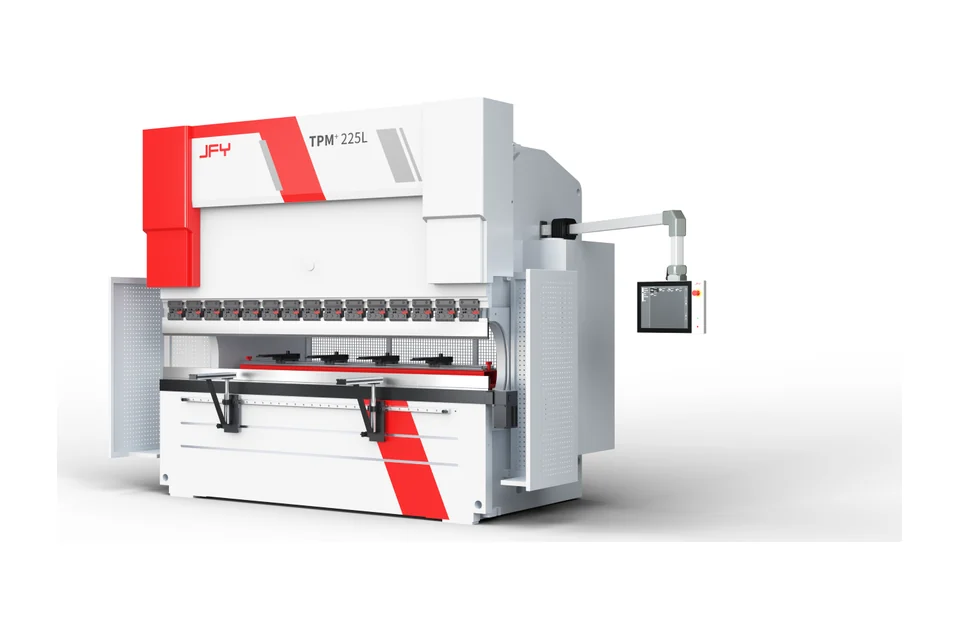

TPM+ L

Longer stroke and greater open height for tall tools.
3 models · 100–225 T · 3,100–3,100 mm

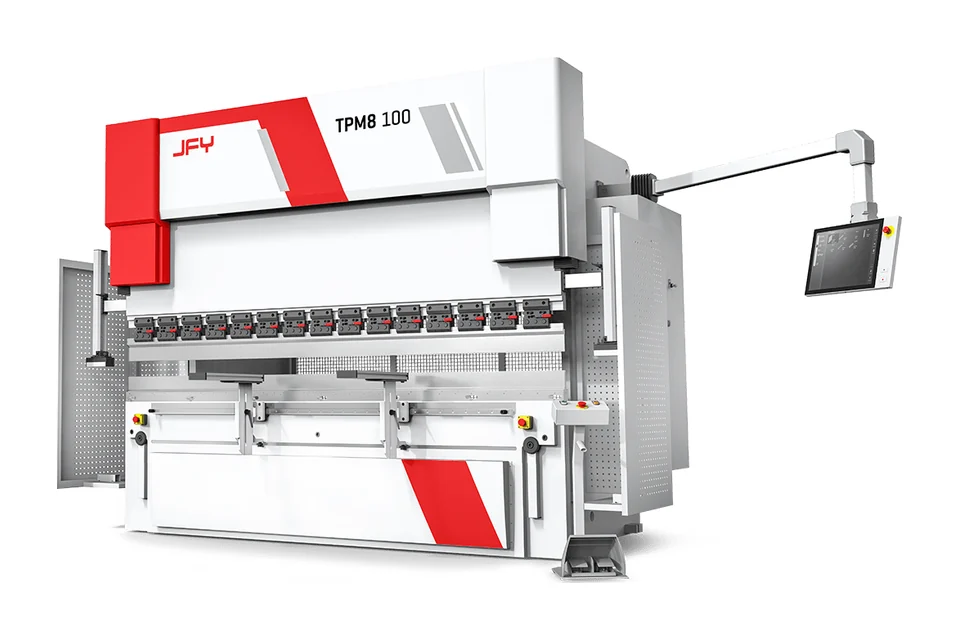

TPM8

Servo-motor hydraulic drive, TJS-90T, 60 to 320 t.
5 models · 60–320 T · 2,050–4,100 mm

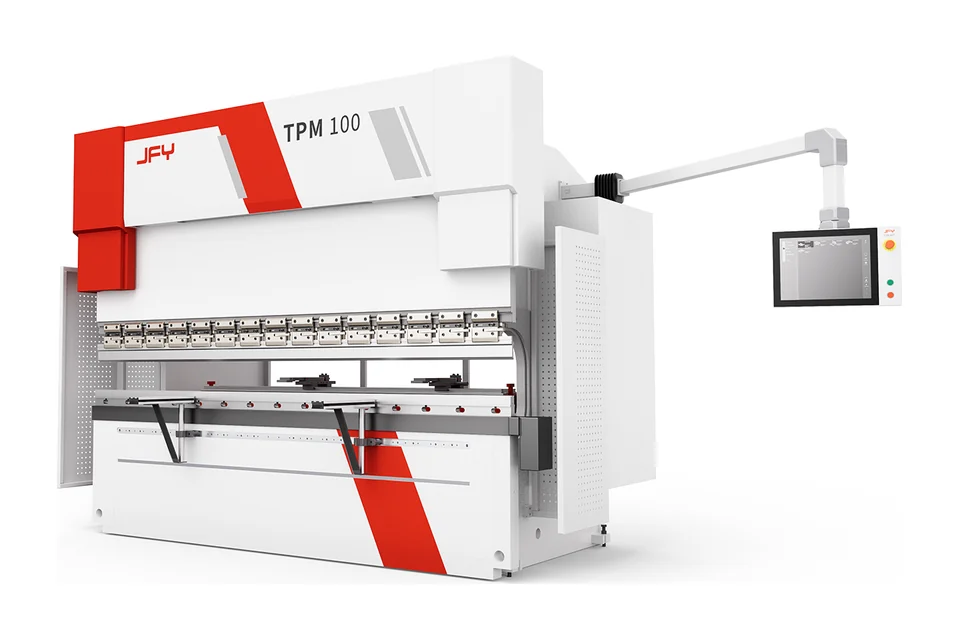

TPM

Servo-motor hydraulics and the TJS-60T control, 60 to 320 t.
12 models · 60–320 T · 1,500–6,000 mm

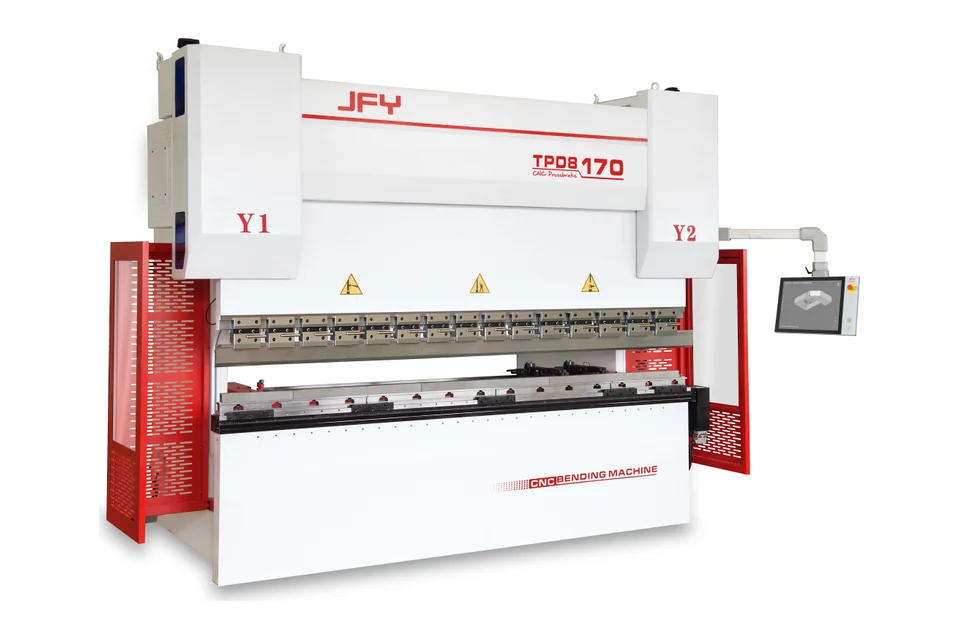

TPD

Dual electric servo pumps, T-3500T control.
4 models · 110–170 T · 3,100–4,100 mm

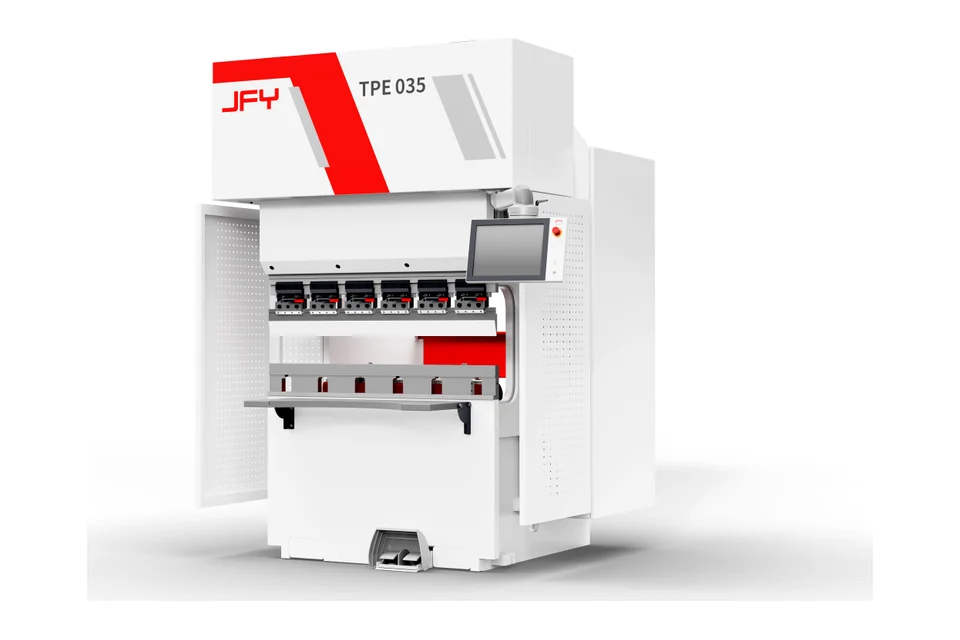

TPE

Torque motors driving roller screws directly.
2 models · 35–60 T · 1,250–2,050 mm

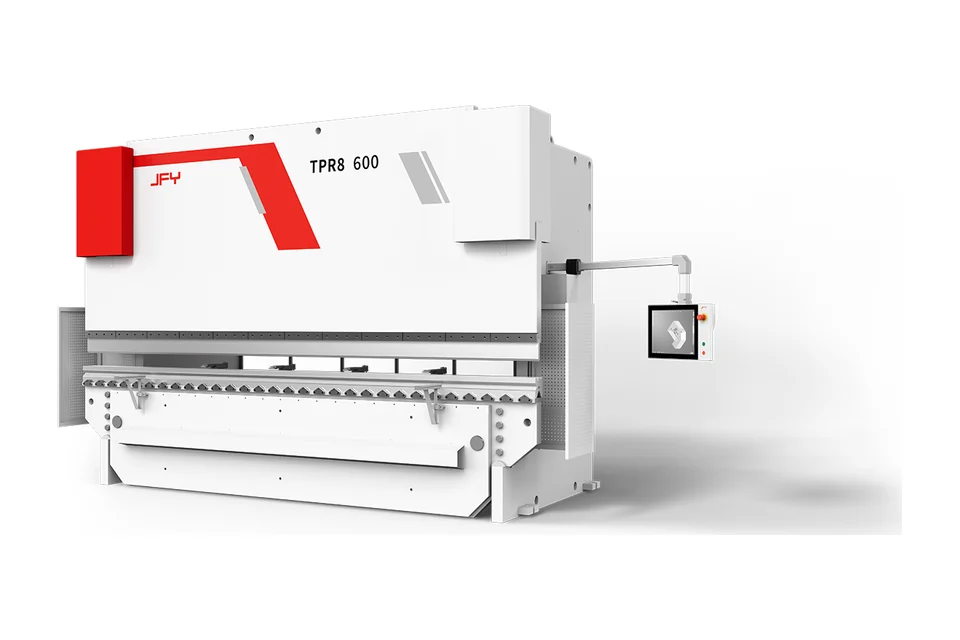

TPR8

400 to 800 t with closed-loop synchronised cylinders.
8 models · 400–800 T · 4,100–6,000 mm

Company information, specifications and images from JFY products (Chinese), JFY International, TPM+ CNC press brake, TPM+ L long-stroke press brake, TPM 8 CNC press brake, TPM CNC press brake, TPD dual-servo press brake, TPE electric press brake, TPR8 heavy-duty press brake, retrieved 27 October 2026. JFY states more than 30,000 machines installed and coverage of 50+ countries through more than 30 sales and service partners, so its models are listed in every catalog region.

Model	Pressing force	Bending length	Open height	Throat depth
TPM+ 100-3100	100 T	3,100 mm	Not provided	410 mm
TPM+ 100-4100	100 T	4,100 mm	Not provided	410 mm
TPM+ 150-3100	150 T	3,100 mm	Not provided	410 mm
TPM+ 150-4100	150 T	4,100 mm	Not provided	410 mm
TPM+ 225-3100	225 T	3,100 mm	Not provided	410 mm
TPM+ 225-4100	225 T	4,100 mm	Not provided	410 mm
TPM+ 320-3100	320 T	3,100 mm	Not provided	410 mm
TPM+ 320-4100	320 T	4,100 mm	Not provided	410 mm

Model	Pressing force	Bending length	Open height	Throat depth
TPM+ 100L-3100	100 T	3,100 mm	Not provided	450 mm
TPM+ 150L-3100	150 T	3,100 mm	Not provided	450 mm
TPM+ 225L-3100	225 T	3,100 mm	Not provided	450 mm

Model	Pressing force	Bending length	Open height	Throat depth
TPM8 60/2050	60 T	2,050 mm	Not provided	350 mm
TPM8 100/3100	100 T	3,100 mm	Not provided	410 mm
TPM8 150/3100	150 T	3,100 mm	Not provided	410 mm
TPM8 225/3100	225 T	3,100 mm	Not provided	410 mm
TPM8 320/4100	320 T	4,100 mm	Not provided	410 mm

Model	Pressing force	Bending length	Open height	Throat depth
TPM 060-1500	60 T	1,500 mm	Not provided	350 mm
TPM 060-2050	60 T	2,050 mm	Not provided	350 mm
TPM 060-2550	60 T	2,550 mm	Not provided	350 mm
TPM 100-3100	100 T	3,100 mm	Not provided	410 mm
TPM 100-4100	100 T	4,100 mm	Not provided	410 mm
TPM 150-3100	150 T	3,100 mm	Not provided	410 mm
TPM 150-4100	150 T	4,100 mm	Not provided	410 mm
TPM 225-3100	225 T	3,100 mm	Not provided	410 mm
TPM 225-4100	225 T	4,100 mm	Not provided	410 mm
TPM 320-3100	320 T	3,100 mm	Not provided	410 mm
TPM 320-4100	320 T	4,100 mm	Not provided	410 mm
TPM 320-6000	320 T	6,000 mm	Not provided	410 mm

Model	Pressing force	Bending length	Open height	Throat depth
TPD8 110/3100	110 T	3,100 mm	Not provided	410 mm
TPD8 110/4100	110 T	4,100 mm	Not provided	410 mm
TPD8 170/3100	170 T	3,100 mm	Not provided	410 mm
TPD8 170/4100	170 T	4,100 mm	Not provided	410 mm

Compare	Model	Pressing force	Bending length	Open height	Throat depth
	TPE 035-1250	35 T	1,250 mm	Not provided	350 mm
	TPE 060-2050	60 T	2,050 mm	Not provided	350 mm

Model	Pressing force	Bending length	Open height	Throat depth
TPR8 400/4100	400 T	4,100 mm	Not provided	410 mm
TPR8 400/5000	400 T	5,000 mm	Not provided	410 mm
TPR8 400/6000	400 T	6,000 mm	Not provided	410 mm
TPR8 500/4100	500 T	4,100 mm	Not provided	500 mm
TPR8 500/5000	500 T	5,000 mm	Not provided	500 mm
TPR8 500/6000	500 T	6,000 mm	Not provided	500 mm
TPR8 600/6000	600 T	6,000 mm	Not provided	500 mm
TPR8 800/6000	800 T	6,000 mm	Not provided	500 mm
