Learn more about Gasparini press brakes

About Gasparini

Gasparini began in 1975, when a machine shop founded as Gasparini SAS started series production of press brakes. It patented automatic crowning and the GPS4 angle sensor in 1996, launched the X-Press range in 2003, and the present company, Gasparini Industries srl, was formed in 2010.

All its press brakes are built at the plant in Istrana, in the province of Treviso. Gasparini puts customisation first: stroke, opening, throat, tool-adapter height and backgauge axes are adapted to the customer's parts.

1975Founded
2003X-Press range launched
30–1,250 tX-Press force range

The Gasparini Press Brake Range

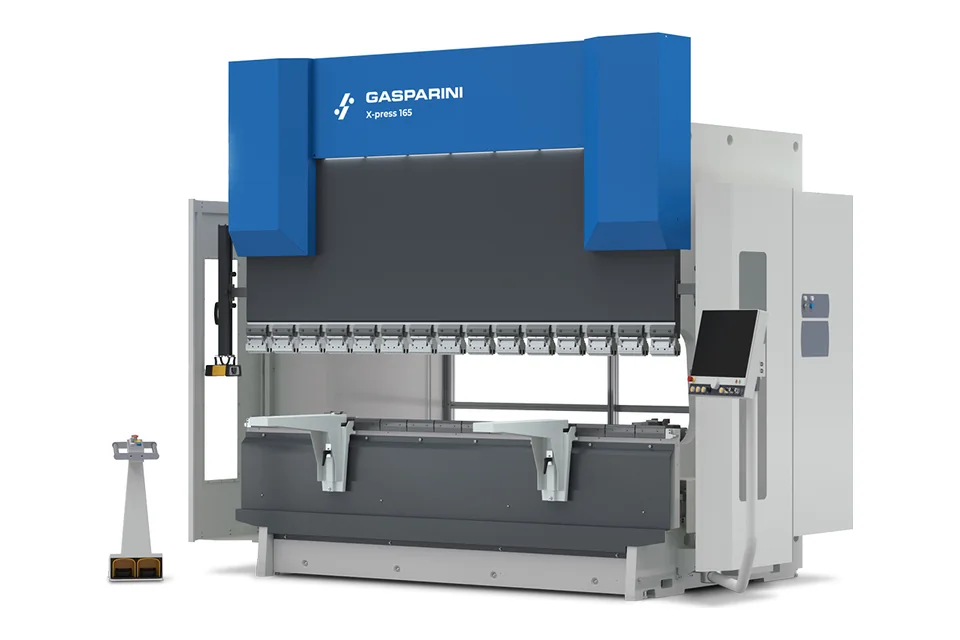

X-Press

53 published sizes from 30 t × 1,250 mm to 1,250 t × 10,100 mm.
53 models · 30–1,250 T · 1,250–10,100 mm

X-Press Easy

The simple, robust configuration.
Configuration of the X-Press; Gasparini publishes one data sheet for all configurations (listed under X-Press).

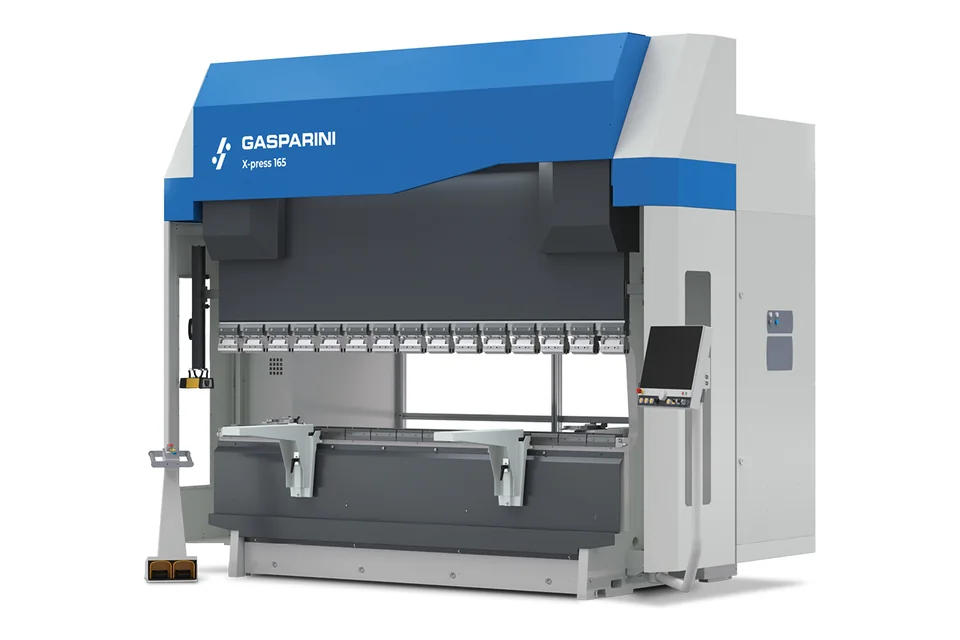

X-Press Next

The versatile configuration with up to 8 backgauge axes.
Configuration of the X-Press; Gasparini publishes one data sheet for all configurations (listed under X-Press).

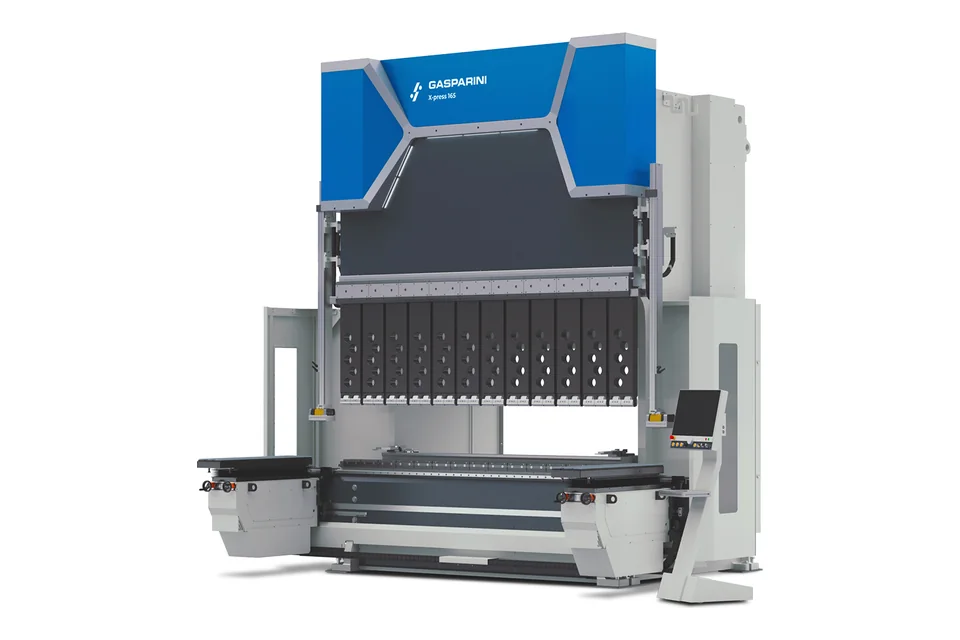

X-Press SuperCustom

Made to measure for large boxes and tanks.
Made to the customer's dimensions; the X-Press data sheet linked on its page is listed under X-Press.

Company information, specifications and images from Gasparini press brakes, X-Press Easy, X-Press Next, X-Press SuperCustom, X-Press technical data (PDF), Gasparini history, Sales network, X-Press press brakes, retrieved 28 October 2026. Gasparini's sales network page lists partners across Europe and in the United States, Brazil, Chile, India, Taiwan, the Philippines, Australia and South Africa, so it is listed in every catalog region.

Model	Pressing force	Bending length	Open height	Throat depth
X-Press 30/1250	30 T	1,250 mm	Not provided	150 mm
X-Press 50/1600	50 T	1,670 mm	Not provided	300 mm
X-Press 50/2000	50 T	2,100 mm	Not provided	300 mm
X-Press 50/2500	50 T	2,600 mm	Not provided	300 mm
X-Press 80/2000	80 T	2,100 mm	Not provided	400 mm
X-Press 80/2500	80 T	2,600 mm	Not provided	400 mm
X-Press 115/2500	115 T	2,600 mm	Not provided	400 mm
X-Press 115/3000	115 T	3,100 mm	Not provided	400 mm
X-Press 115/4000	115 T	4,100 mm	Not provided	400 mm
X-Press 165/3000	165 T	3,100 mm	Not provided	400 mm
X-Press 165/4000	165 T	4,100 mm	Not provided	400 mm
X-Press 165/5000	165 T	5,100 mm	Not provided	400 mm
X-Press 225/3000	225 T	3,100 mm	Not provided	400 mm
X-Press 225/4000	225 T	4,100 mm	Not provided	400 mm
X-Press 225/5000	225 T	5,100 mm	Not provided	400 mm
X-Press 225/6000	225 T	6,100 mm	Not provided	400 mm
X-Press 275/3000	275 T	3,100 mm	Not provided	400 mm
X-Press 275/4000	275 T	4,100 mm	Not provided	400 mm
X-Press 275/5000	275 T	5,100 mm	Not provided	400 mm
X-Press 275/6000	275 T	6,100 mm	Not provided	400 mm
X-Press 330/3000	330 T	3,100 mm	Not provided	400 mm
X-Press 330/4000	330 T	4,100 mm	Not provided	400 mm
X-Press 330/5000	330 T	5,100 mm	Not provided	400 mm
X-Press 330/6000	330 T	6,100 mm	Not provided	400 mm
X-Press 400/4000	400 T	4,100 mm	Not provided	400 mm
X-Press 400/5000	400 T	5,100 mm	Not provided	400 mm
X-Press 400/6000	400 T	6,100 mm	Not provided	400 mm
X-Press 400/7000	400 T	7,100 mm	Not provided	400 mm
X-Press 400/8000	400 T	8,100 mm	Not provided	400 mm
X-Press 500/4000	500 T	4,100 mm	Not provided	500 mm
X-Press 500/5000	500 T	5,100 mm	Not provided	500 mm
X-Press 500/6000	500 T	6,100 mm	Not provided	500 mm
X-Press 500/7000	500 T	7,100 mm	Not provided	500 mm
X-Press 500/8000	500 T	8,100 mm	Not provided	500 mm
X-Press 640/4000	640 T	4,100 mm	Not provided	500 mm
X-Press 640/5000	640 T	5,100 mm	Not provided	500 mm
X-Press 640/6000	640 T	6,100 mm	Not provided	500 mm
X-Press 640/7000	640 T	7,100 mm	Not provided	500 mm
X-Press 640/8000	640 T	8,100 mm	Not provided	500 mm
X-Press 800/5000	800 T	5,100 mm	Not provided	500 mm
X-Press 800/6000	800 T	6,100 mm	Not provided	500 mm
X-Press 800/7000	800 T	7,100 mm	Not provided	500 mm
X-Press 800/8000	800 T	8,100 mm	Not provided	500 mm
X-Press 1000/4000	1,000 T	4,100 mm	Not provided	500 mm
X-Press 1000/5000	1,000 T	5,100 mm	Not provided	500 mm
X-Press 1000/6000	1,000 T	6,100 mm	Not provided	500 mm
X-Press 1000/7000	1,000 T	7,100 mm	Not provided	500 mm
X-Press 1000/8000	1,000 T	8,100 mm	Not provided	500 mm
X-Press 1000/9000	1,000 T	9,100 mm	Not provided	500 mm
X-Press 1000/10000	1,000 T	10,100 mm	Not provided	500 mm
X-Press 1250/7000	1,250 T	7,100 mm	Not provided	500 mm
X-Press 1250/9000	1,250 T	9,100 mm	Not provided	500 mm
X-Press 1250/10000	1,250 T	10,100 mm	Not provided	500 mm
