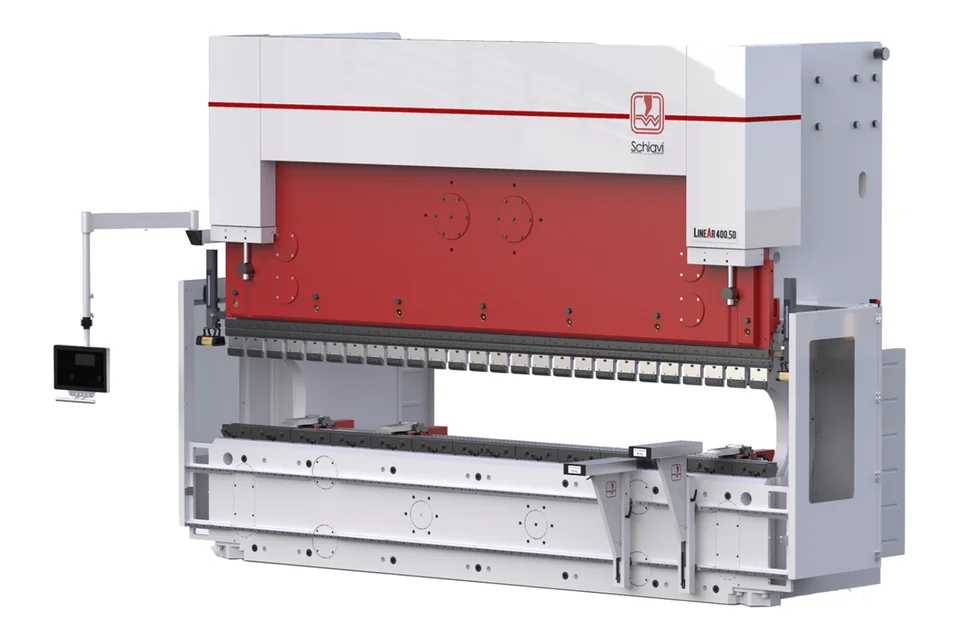

Schiavi LineAr Hybrid 130.30 press brake
The Schiavi LineAr Hybrid 130.30 is a hybrid press brake with 130 t of pressing force and a 3,200 mm bending length.
Specifications
| Drive System | Hybrid |
|---|---|
| Bending length | 3,200 mm |
| Pressing force | 130 t |
| Distance between side frames | 2,840 mm |
| Maximum opening | 600 mm |
| Maximum stroke | 320 mm |
| Throat depth | 450 mm |
| Closing speed | 150 mm/s |
| Maximum working speed | 10 mm/s |
| Return speed | 210 mm/s |
Not published by Schiavi for this model: Synchronisation, CNC controller, Frame type.
Where these figures come from
Read from the specification table in Schiavi’s PDF at schiavimacchine.it (model “130.30”) on 28 October 2026. Values are copied cell by cell and never estimated; force given in kN is divided by 10 for tonnes; a published range is shown by its upper value.
