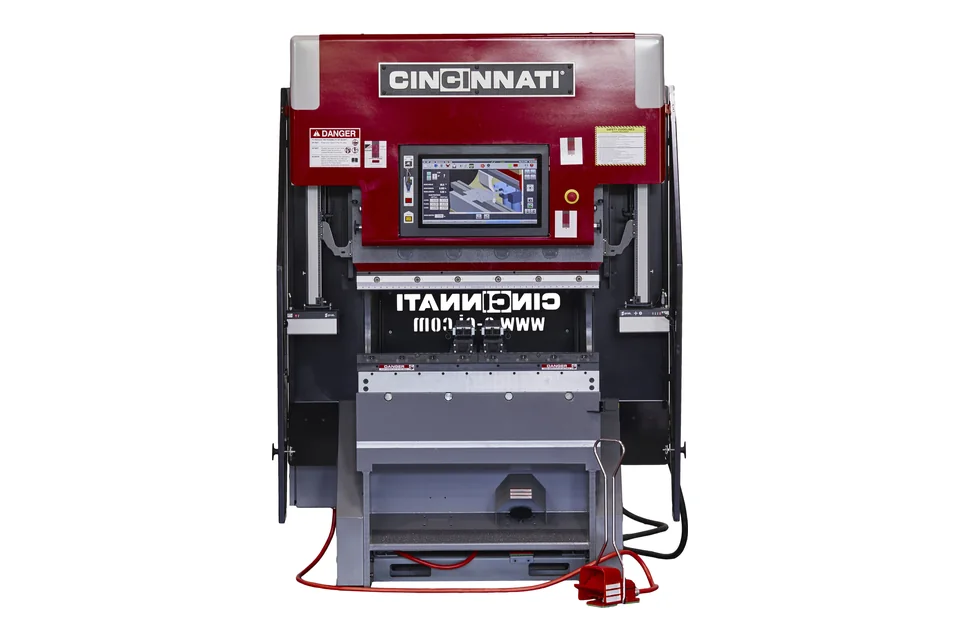

CINCINNATI Goform 40 press brake
The CINCINNATI Goform 40 is an electric press brake with 36.3 t of pressing force.
Specifications
| Drive System | Electric |
|---|---|
| Pressing force | 36.3 t |
| Maximum opening | 431.8 mm |
| Throat depth | 203.2 mm |
| Closing speed | 169.3 mm/s |
| Maximum working speed | 25.4 mm/s |
| Return speed | 169.3 mm/s |
Not published by CINCINNATI for this model: Synchronisation, CNC controller, Bending length, Distance between side frames, Maximum stroke, Frame type.
Where these figures come from
Read from the specification table in CINCINNATI’s PDF at wwwassets.e-ci.com (model “40”) on 28 October 2026. Values are copied cell by cell and never estimated; force given in US tons is multiplied by 0.907 for metric tonnes; lengths in inches are multiplied by 25.4 for millimetres; speeds in inches per minute are converted to mm/s; a published range is shown by its upper value.
